Main Switch

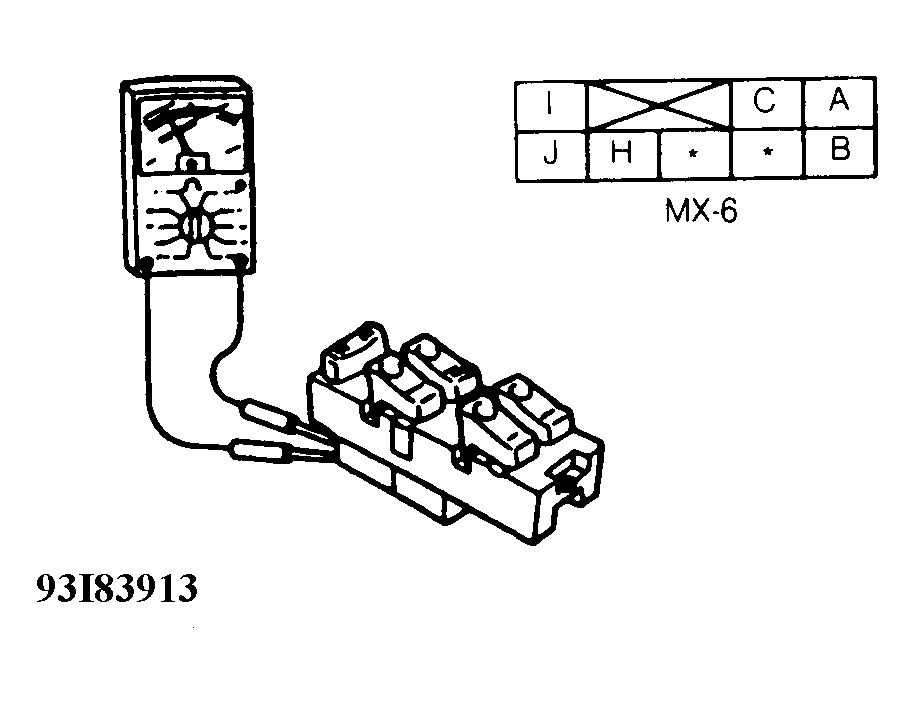

Check continuity across specified terminals of main switch connector with main switch button held in specified position. See MAIN SWITCH CONTINUITY TEST . SeeFig 1 and Fig 2 . Replace main switch if continuity is not as specified.
| Switch Position (1) | Terminals | |||
|---|---|---|---|---|
| Driver | ||||
| UP | A & L; J & H | |||
| DOWN | A & J; L & H | |||
| One-Touch DOWN | A & J; L & H | |||
| Off (Neutral) | J, L & H | |||
| Passenger | ||||
| UP | A & D; H & B | |||
| DOWN | A & B; H & D | |||
| Off (Neutral) | H, B & D | |||
| Right Rear | ||||
| UP | A & E; C & H | |||
| DOWN | A & C; E & H | |||
| Off (Neutral) | C, E & H | |||
| Left Rear | ||||
| UP | A & K; H & I | |||
| DOWN | A & I; H & K | |||
| Off (Neutral) | H, I & K | |||
|
||||
