1991 Mazda 929 BaseFACTORY OEM SERVICE PROCEDURE
Throttle Position Sensor (TPS): RX7: Inspection

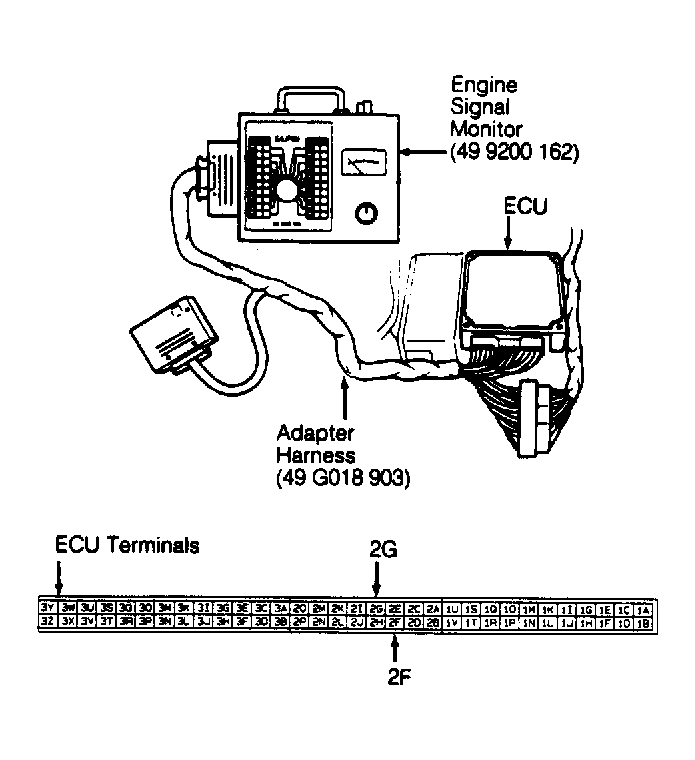

- Warm engine to normal operating temperature. Turn off engine. Connect Engine Signal Monitor (499200162) between ECU and ECU wire harness using Adapter Harness (49G018903).
- Check voltages at ECU terminals 2F and 2G. See Fig 1 . See RX7 TPS VOLTAGE TABLE . If voltages are not within specification, remove engine signal monitor and adapter harness. Adjust TPS. See ADJUSTMENT.
