1991 Mazda 323 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Trailing Side IGNITOR (RX7)

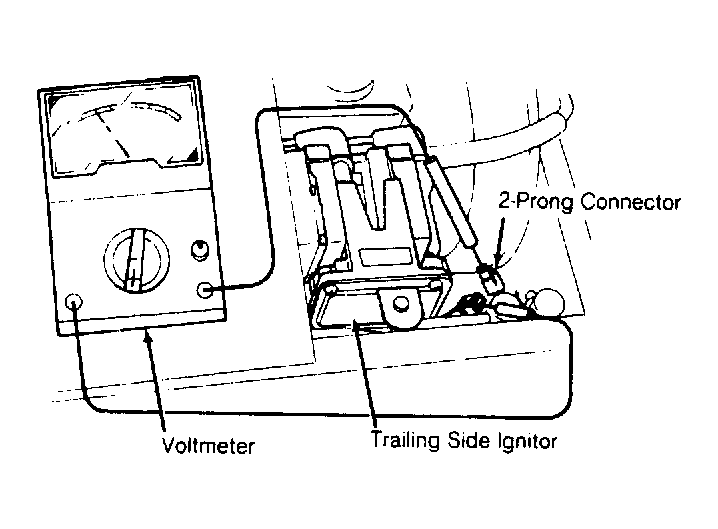

- Disconnect 2-prong connector at ignitor. Connect voltmeter (in series) between the wire terminals of 2 connector halves. See Fig 1 . Turn ignition on and note voltage.
- Voltage should be approximately 12 volts. Turn ignition off. Remove the voltmeter and negative battery cable. Reconnect 2-prong connector. Disconnect 4-prong connector.

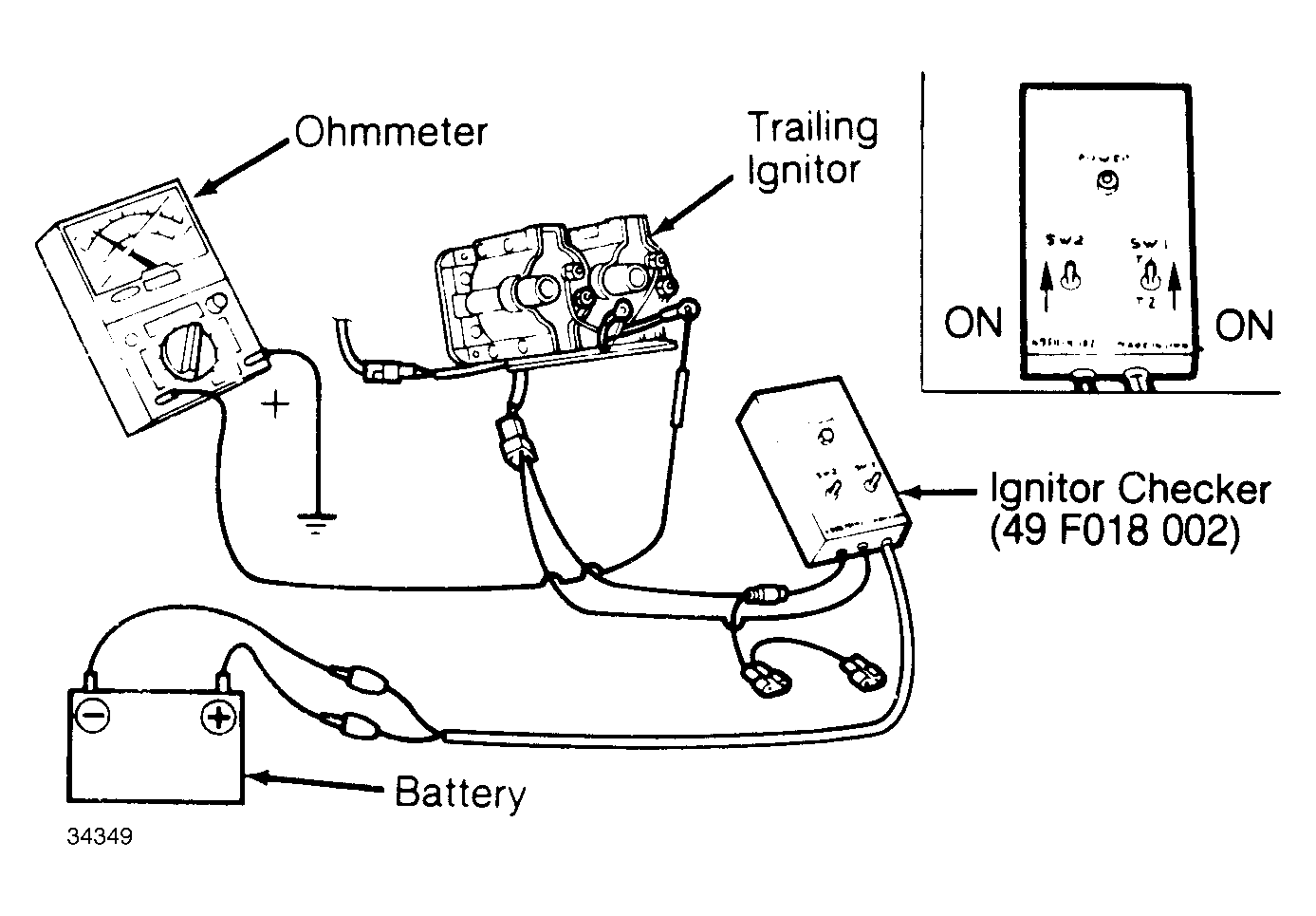

- Install Ignitor Checker (49 F018 002) between 4-prong connectors. See Fig 2 . Disconnect Black and Blue wires from coil. Install negative battery cable.
