Solenoid Valve

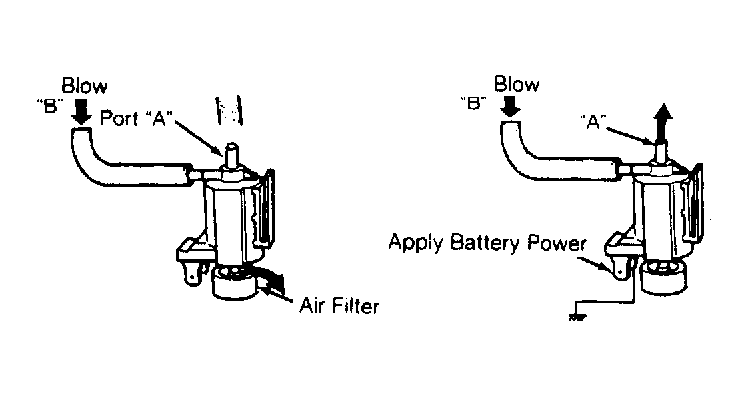

Disconnect vacuum hose from solenoid valve port "A". Blow through port "B". See Fig 1 . Verify air flows from valve air filter. Disconnect solenoid valve connector. Connect 12 volts and a ground to solenoid valve terminals. Blow through valve port "B" and ensure air flows from port "A". Replace solenoid valve if it does not perform as indicated.
