Resistance Tests

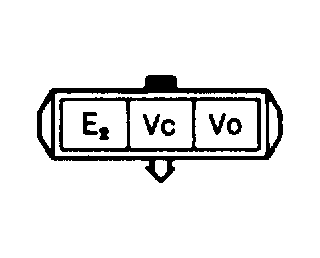

Remove sensor connector. Note terminal identification. See Fig 1 . Using ohmmeter, check resistance at specified terminals. Resistance must be within specification. See METERING OIL PUMP POSITION SENSOR RESISTANCE table.
| Terminal | Ohms |
|---|---|
| Vc-E2 | 1000-2000 |
| Vo-E2 | 400-12,000 |
| Vo-Vc | 400-12,000 |
