Intake Air THERMOSENSOR

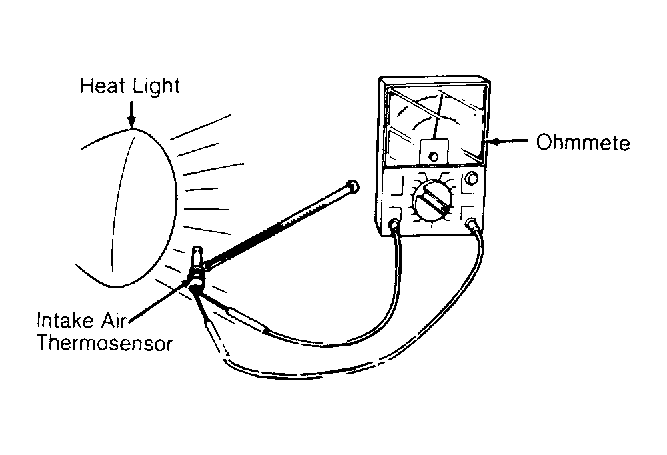

Remove intake air thermosensor. See Figure , Figure & Fig 1 . Using a heat lamp, ohmmeter and thermometer, measure resistance of sensor at various temperatures. See INTAKE AIR TEMPERATURE SENSOR RESISTANCE SPECIFICATIONS table. Replace sensor if not within specification.
| Temperature °F (°C) | Ohms |
|---|---|
| 77 (25) | 29,000-37,000 |
| 185 (85) | 3100-3900 |
