Airflow Meter/Sensor: Inspection

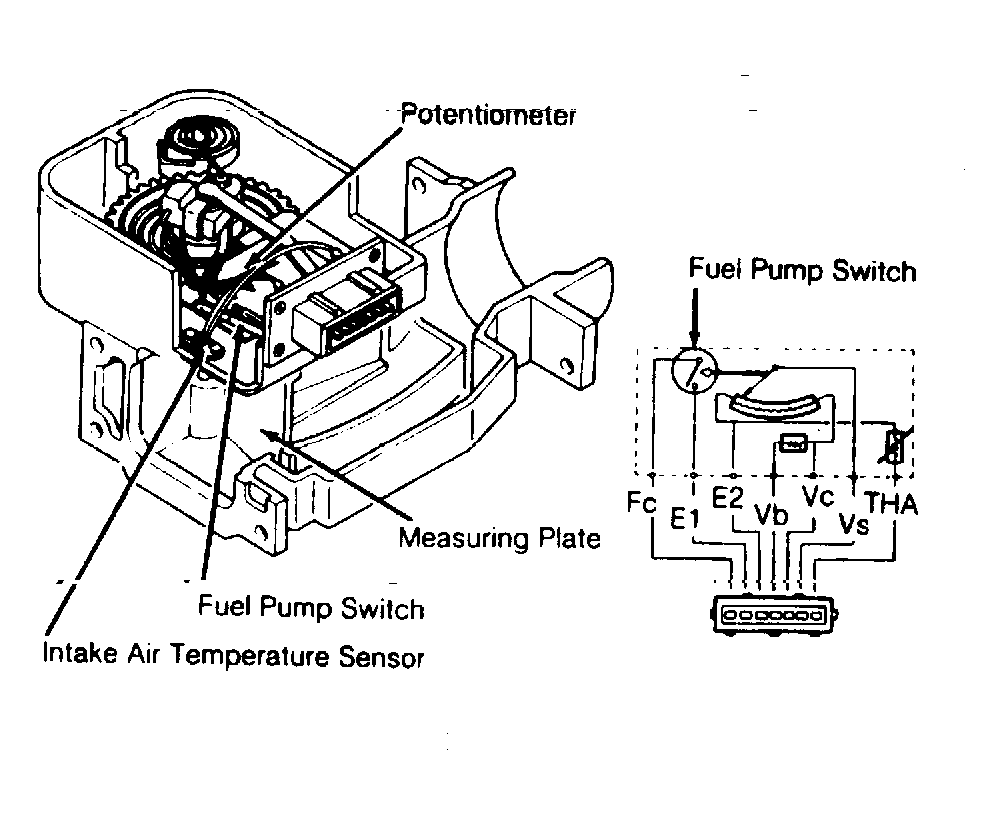

Inspect airflow meter for damage and ensure measuring plate moves smoothly. See Fig 1 . Disconnect airflow meter connector. Move measuring plate and measure resistance between terminals. See AIRFLOW METER TERMINAL RESISTANCE table.
| Terminals | Fully Closed Ohms | Fully Open Ohms | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| E2-Vs | 20-400 | 20-1000 | ||||||||
| E2-Vc | (1) 100-300 | (1) 100-300 | ||||||||
| E2-Vb | 200-400 | 200-400 | ||||||||
| E2-THA | (2) 13,600-18,400 | (2) 13,600-18,400 | ||||||||
| (3) 2200-2700 | (3) 2200-2700 | |||||||||
| (4) 500-700 | (4) 500-700 | |||||||||
| E1-Fc | Infinite | 0 | ||||||||
|
||||||||||
