1990 Mazda 929 BaseFACTORY OEM SERVICE PROCEDURE
Fuel System: Carburetor: Disassembly
- Remove dashpot vacuum hose. Remove accelerator pump connecting rod, spring and lever. Disconnect air vent solenoid valve lead from connector. Disconnect choke rod. Remove air horn retaining bolts.
- Remove air horn and choke assembly from main body. Remove air vent solenoid valve, spring and gasket from air horn. Remove float, pin and gasket. Remove needle valve. Remove sight glass assembly from main body.CAUTION: Note location and size of jets and air bleeds prior to removal. Components must be installed in correct location.

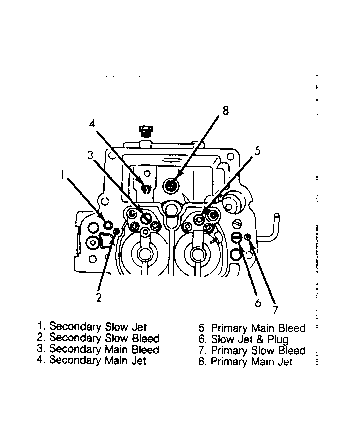

- Remove secondary slow jet, secondary slow bleed, secondary main bleed, and secondary main jet from main body. Remove primary main bleed, slow jet and plug, primary slow bleed and primary main jet from main body. See Fig 1 , Fig 2 and Fig 3 .
