1989 Mazda RX-7 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
System/Component Tests: Turbocharger: WASTEGATE

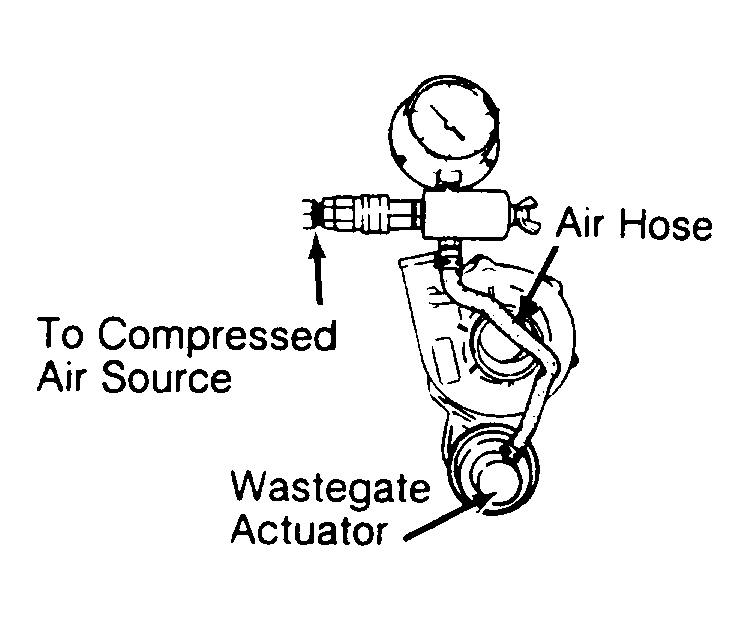

- Engine must be cool. Remove exhaust manifold insulator and side insulator. Remove hose connected to actuator and connect compressed air source with pressure gauge. See Fig 1 .
- Apply compressed air to actuator. Apply 10 psi (0.7 kg/cm2 ). Verify actuator rod moves when connecting and disconnecting hose supplying compressed air.
