1989 Mazda RX-7 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Throttle Diaphragm

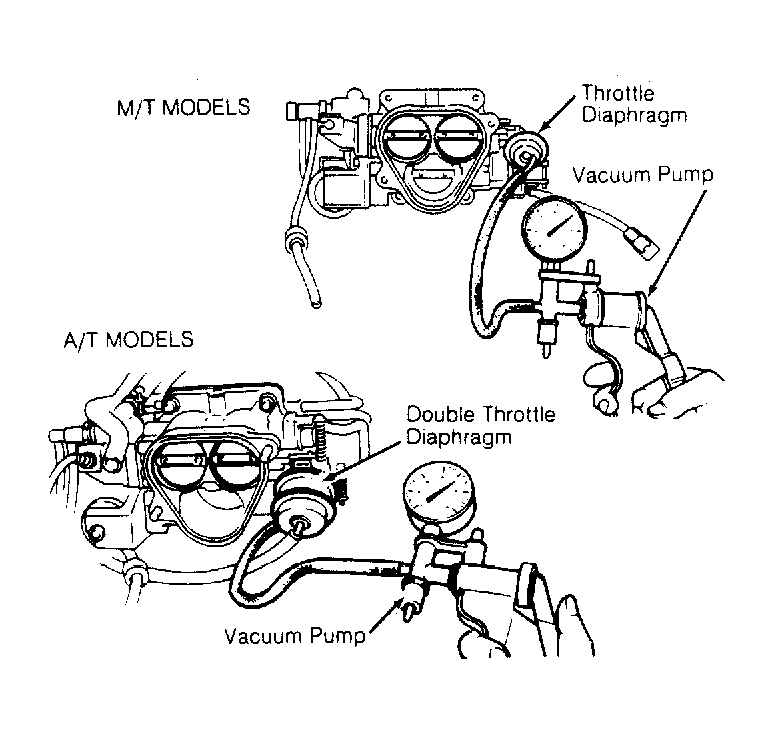

- On M/T models, disconnect hose at throttle diaphragm. Using vacuum pump, apply at least 7.8 in. Hg to throttle diaphragm. See Fig 1 .
- Ensure that No. 2 secondary throttle valve is fully open. On A/T models, disconnect hose from double throttle diaphragm. Using vacuum pump, apply 18.1 in. Hg to No. 2 secondary double throttle diaphragm. See Fig 1 .
- With vacuum applied, check clearance between No. 2 secondary throttle valve and throttle bore wall when primary throttle valve is closed. Clearance should be .09-.13" (2.3-3.3 mm).
