1989 Mazda 929FACTORY OEM SERVICE PROCEDURE
Ignitor (929)
- Turn ignition off. Disconnect ignitor connector and install Test Harness (49 9200 443). Using a needle-type ohmmeter, connect "+" lead to ground and "-" lead to single-pin test wire of test harness.CAUTION: Ensure ohmmeter is installed with "+" lead to ground and "-" lead to single-pin wire of test harness. DO NOT reverse leads, or damage may result.

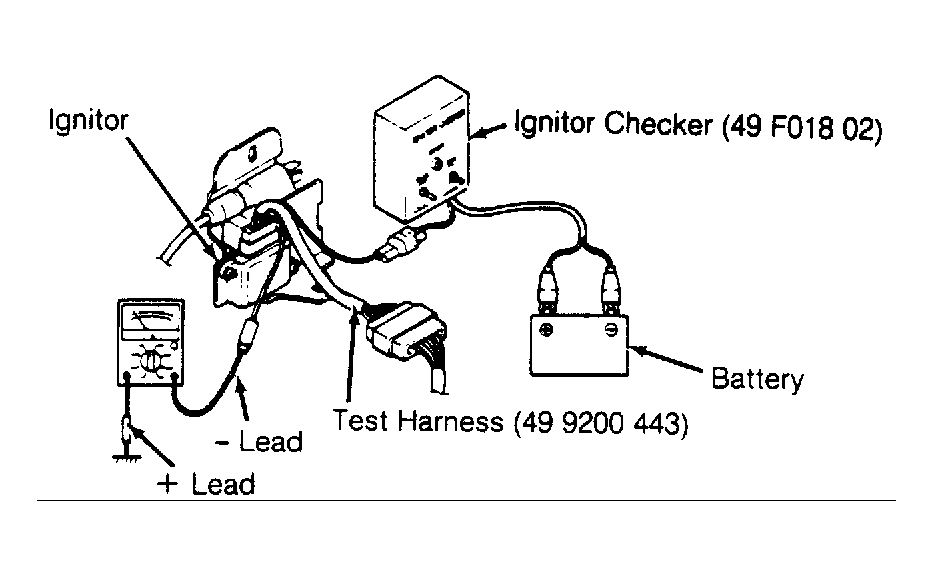

- Connect Ignitor Checker (49 F018 002) to other lead of test harness and to battery. See Fig 1 . Set ohmmeter to X1 scale.
- Turn ignition on. Do not touch ignitor checker "SW1" switch. Push up ignitor checker "SW2" switch and note ohmmeter reading. Ohmmeter needle should jump to 1/2 of the scale and then return. If not, replace ignitor.
