1988 Mazda RX-7 Base, 2D ConvertibleFACTORY OEM SERVICE PROCEDURE
Variable Resistor

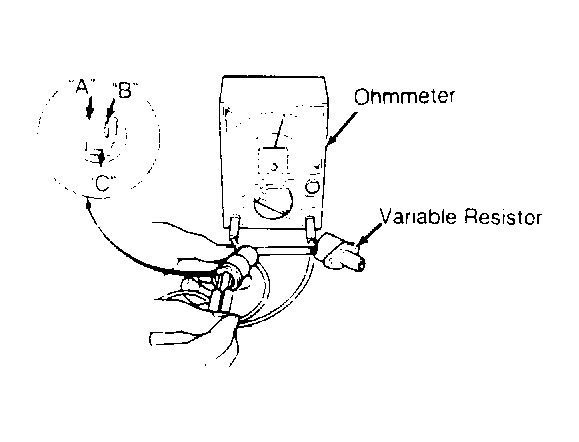

Remove resistor connector. Note terminal identification. See Fig 1 . Using ohmmeter, check resistance at specified terminals. See VARIABLE RESISTOR RESISTANCE table. Replace resistor if not within specification.
NOTE:
Idle mixture must be adjusted if variable resistor is
replaced.
VARIABLE RESISTOR RESISTANCE
| Terminal | k/Ohms |
|---|---|
| A & C | .5-4.5 |
| B & C | .5-4.5 |
