1988 Mazda RX-7 Base, 2D ConvertibleFACTORY OEM SERVICE PROCEDURE

Turbo Solenoid Valve

Disconnect vacuum hoses from solenoid valve. Blow through port "B". See Fig 1 . Air should flow from air filter. Remove connector from solenoid valve.
Apply battery voltage and ground to proper terminals. See Fig 1 . Blow through port "B". Air should flow from port "A".

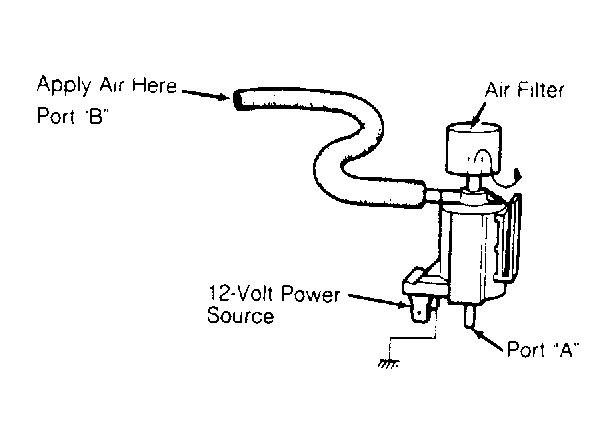

Fig 1: Testing Turbo Solenoid Valve

Courtesy of MAZDA MOTORS CORP.
