1988 Mazda RX-7 Base, 2D ConvertibleFACTORY OEM SERVICE PROCEDURE
Throttle Sensor

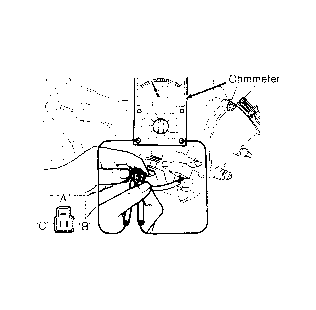

- On turbo models, remove intercooler. On all models, remove sensor connector. Connect ohmmeter to terminals "A" and "B". See Fig 1 . Open throttle valve and note resistance readings.
- On non-turbo models, repeat procedure on terminals "A" and "C". Resistance readings must be within specification. See THROTTLE SENSOR RESISTANCE table. Install sensor connector. On turbo models, reinstall intercooler.
THROTTLE SENSOR RESISTANCE
| Terminal | k/Ohms |
|---|---|
| A & B - Idle Position | 1 |
| A & B - Fully Open | 4-6 |
| A & C (Non-Turbo Only) - Idle Position | 4-6 |
| A & C (Non-Turbo Only) - Fully Open | 4-6 |
