1988 Mazda B2600 SE-5, 2D Pickup, StandardFACTORY OEM SERVICE PROCEDURE
Slow Fuel-Cut System: B2600

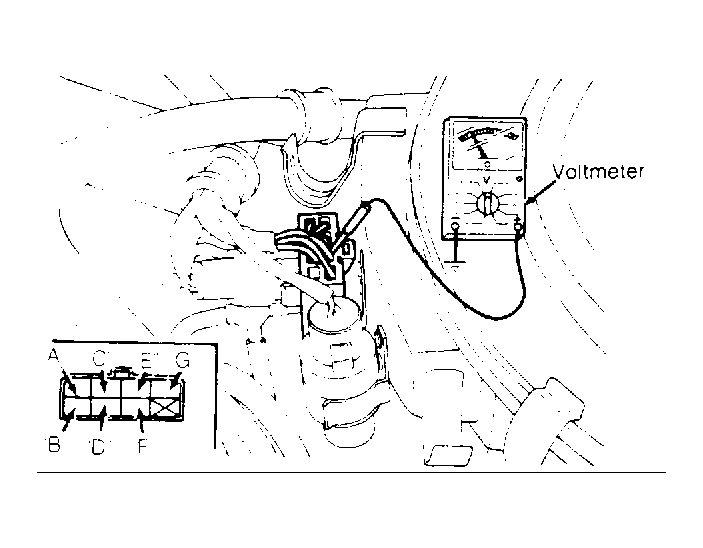

- Bring engine to normal operating temperature and run at idle. Connect a voltmeter to "E" terminal of solenoid valve connector. See Fig 1 .
- Connect a tachometer. Observe voltmeter and tachometer. Accelerate engine to 4000 RPM and decelerate rapidly. During deceleration, voltmeter should momentarily read 13-15 volts and then 0-0.6 volts at idle.
