1988 Mazda 929 AutomaticFACTORY OEM SERVICE PROCEDURE

Pressure Regulator Control (PRC) Solenoid

Disconnect intake air temperature sensor on dynamic chamber. Connect a 3000 ohms resistor to sensor connector. Disconnect coolant temperature sensor. Connect a 200 ohms resistor to sensor connector.
Connect voltmeter between PRC solenoid Blue/Black wire and ground. With engine running, voltage should be less than 2.5 volts for 4 minutes after starting. After 4 minutes, voltage should be 12 volts. If not repair wiring or connection. See Fig 1 .

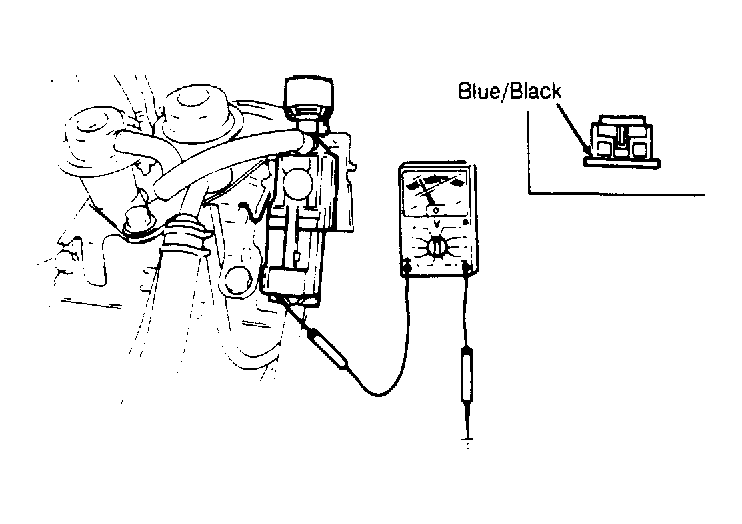

Fig 1: Checking Pressure Regulator Control Solenoid
Courtesy of MAZDA MOTORS CORP.
Disconnect vacuum hose from solenoid. Blow through port A. Ensure air exhausts through port B. See Fig 2 .
Disconnect 2 wire connector from solenoid. Connect 12 volts to one terminal and ground the other terminal of solenoid. Blow air though port A. Ensure air exhausts through air filter.

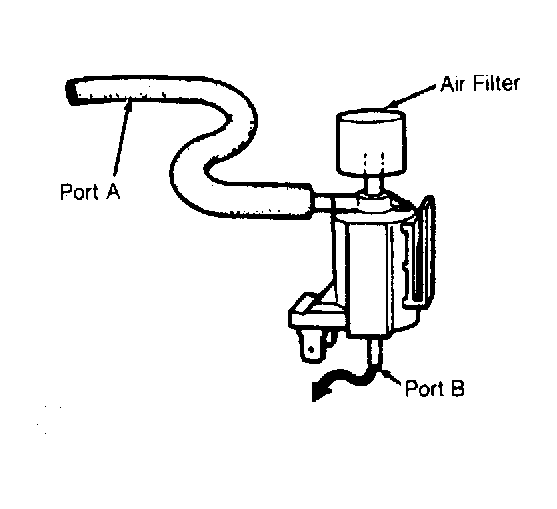

Fig 2: Pressure Regulator Control Solenoid

Courtesy of MAZDA MOTORS CORP.
