1988 Mazda 929 AutomaticFACTORY OEM SERVICE PROCEDURE
Idle Switch

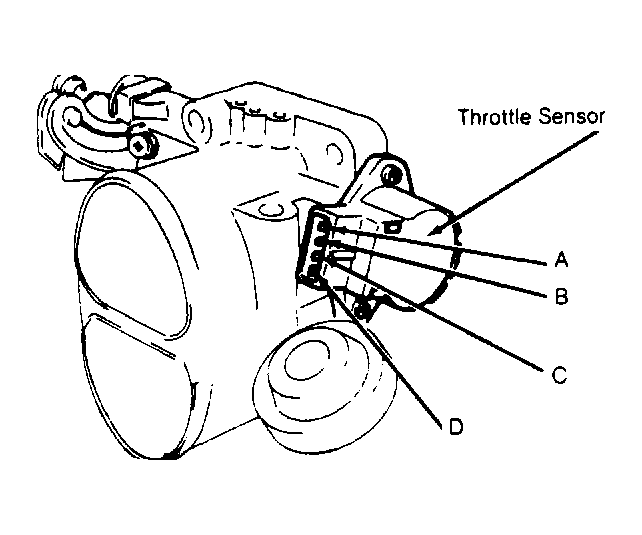

- Disconnect throttle sensor connector. Connect an ohmmeter between terminals C and D. With a .02" (.5 mm) feeler gauge between throttle stop and throttle lever, resistance should be zero ohms. See Fig 1 .
- With a .028" (.7 mm) feeler gauge between throttle stop and throttle lever, resistance should be infinite. If not within specifications, adjust throttle sensor.
