1988 Mazda 929 AutomaticFACTORY OEM SERVICE PROCEDURE
Circuit Opening Relay
- Remove circuit opening relay. Check circuit opening relay circuits with CIRCUIT OPENING RELAY TERMINAL CIRCUITS
table.CIRCUIT OPENING RELAY TERMINAL CIRCUITS

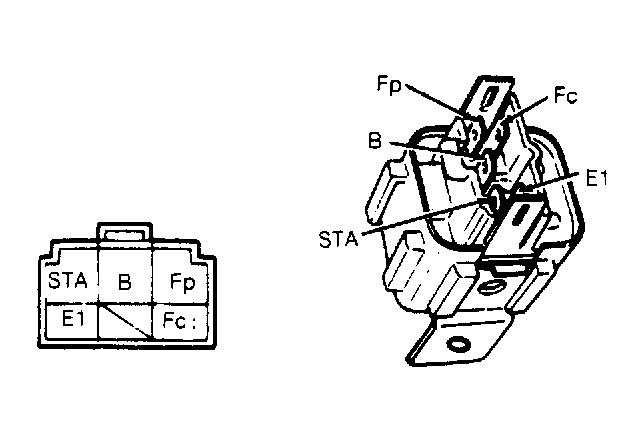

Terminal Condition Results Fp Resistance to Ground 0.2-30 Ohms Fc Resistance to Ground (Cranking) Infinite B Voltage to Ground (Ign. On) Battery Voltage STA Voltage to Ground (Cranking) Approx. 9 Volts E1 Resistance to Ground Infinite - With circuit opening relay removed, apply 12 volts to terminal STA of relay. Ground terminal E1. Ensure there is continuity from relay terminals B to FP. See Fig 1 .
- Apply 12 volts to terminal B of relay. Ground terminal Fc. Ensure there is battery voltage at relay terminal Fp.
- Ensure that relay has correct resistance between terminal with CIRCUIT OPENING RELAY RESISTANCE table.
CIRCUIT OPENING RELAY RESISTANCE
| Terminals | Resistance |
|---|---|
| STA to E1 | 15-30 Ohms |
| B to Fc | 80-150 Ohms |
| B to Fp | Infinite |
