1988 Mazda 323 Base, 2D HatchbackFACTORY OEM SERVICE PROCEDURE

Throttle Sensor (Turbo)

Remove rubber boot from throttle sensor. See Fig 1 . With ignition on, check voltage between each terminal and ground. See THROTTLE SENSOR VOLTAGE table. Repeat test with throttle wide open.

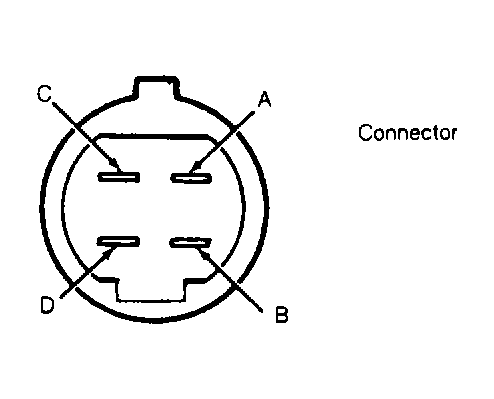

Fig 1: Throttle Sensor Connector Identification

Courtesy of MAZDA MOTORS CORP.

THROTTLE SENSOR VOLTAGE (323 TURBO)

Termina Codes	Closed Volts	Wide Open Volts
A	0.3-0.7	Approx. 4.0
B	Less Than 1.5	Less Than 1.5
C	4.5-5.5	4.5-5.5
D	Less Than 1.5	Approx. 12.0

If not correct at terminal D only, check throttle sensor adjustment. If not correct at terminals A, B or C, check resistance. If resistance is okay, check voltage at ECU connector terminals No. 2A, 2C and 2E.

THROTTLE SENSOR RESISTANCE (323 TURBO)

Terminal	Closed Throttle	Wide Open Throttle
A-B	Approx. 500 ohms	Approx. 4500 ohms
B-C	3000-7000 ohms	7000

NOTE: All procedures are made with engine at normal operating temperature.
