Disconnect TPS connector. Using an ohmmeter, check continuity with selected thickness gauge between throttle stop screw and stop lever. See TPS ADJUSTMENT (323 NON-TURBO) table.
To adjust, loosen TPS attaching screws. Connect ohmmeter between terminals IDL and TL. See Fig 1 . Insert a .020" (.5 mm) thickness gauge between adjustment screw and stop lever. Rotate TPS until ohmmeter shows continuity.
Insert a .028" (.7 mm) thickness gauge between adjustment screw and stop lever. Ohmmeter should show no continuity. If ohmmeter does not read correctly, repeat adjustment procedure to obtain correct readings.

TPS ADJUSTMENT (323 NON-TURBO)

Test Condiiton ⁽¹⁾

Continuity Between IDL-TL

Continuity Between PSW-TL

.02" (.5 mm)

Yes

.03" (.7 mm)

Wide Open Throttle

Yes

⁽¹⁾	Insert specified thickness gauge between throttle adjustment screw and stop lever for first 2 test conditions.

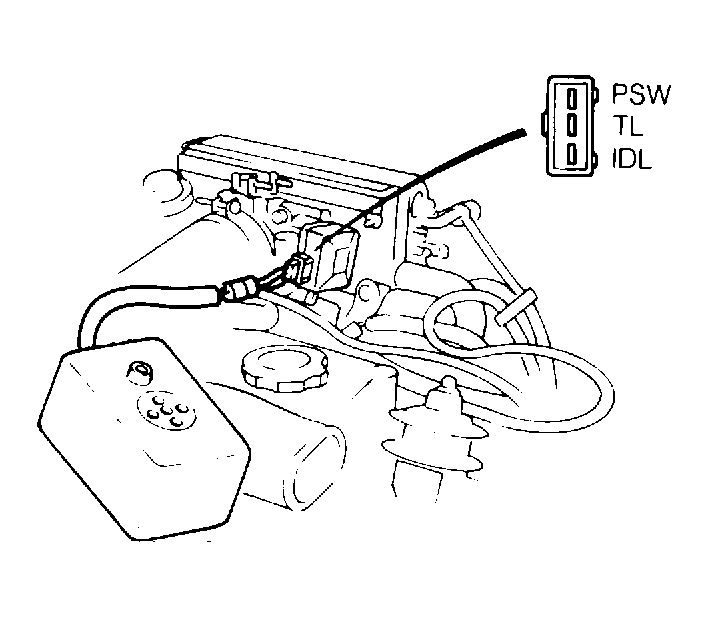

Fig 1: 323 Non-Turbo TPS Connector Terminal Identification

Courtesy of MAZDA MOTORS CORP.
