1987 Mazda RX-7 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Throttle Chamber (Non-Turbo)

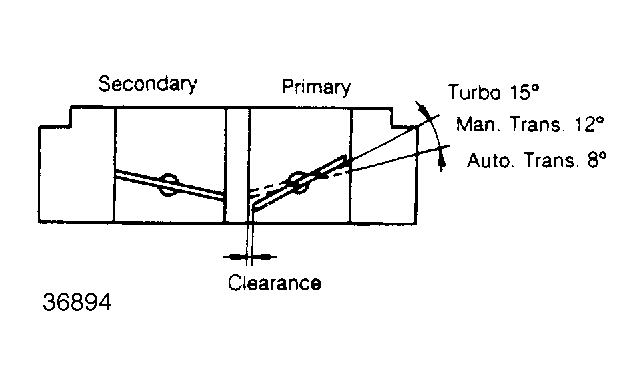

- The No. 1 secondary throttle valve starts to open when the primary valve opens 12 degrees (man. trans.) or 8 degrees (auto. trans.). See Fig 1 . Secondary throttle valve should be completely open when the primary valve fully opens.
- Check the clearance between the primary throttle valve and the wall of the throttle bore when the No. 1 secondary valve starts to open.
- Clearance should be .02-.03" (.5-.7 mm) for manual transmission. Clearance should be .03-.06 (.8-.14 mm) for automatic transmission. See Fig 1 . If not, bend the tab until the proper clearance is obtained. See Figure .
