Fuel Evaporation System: Description

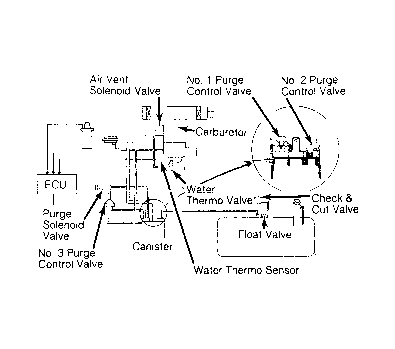

Fuel evaporation system prevents escape of raw fuel vapor to atmosphere. Components of system include a fuel tank with integral vapor separator, a check and cut valve, an air vent solenoid valve (B2200 and B2600), purge control valves, a charcoal canister, a fuel filler cap, a water thermo valve and connecting lines and hoses.
Additional component includes, an Emission Control Unit (ECU).
