Fuel Pump Resistor Relay (Turbo): Notes

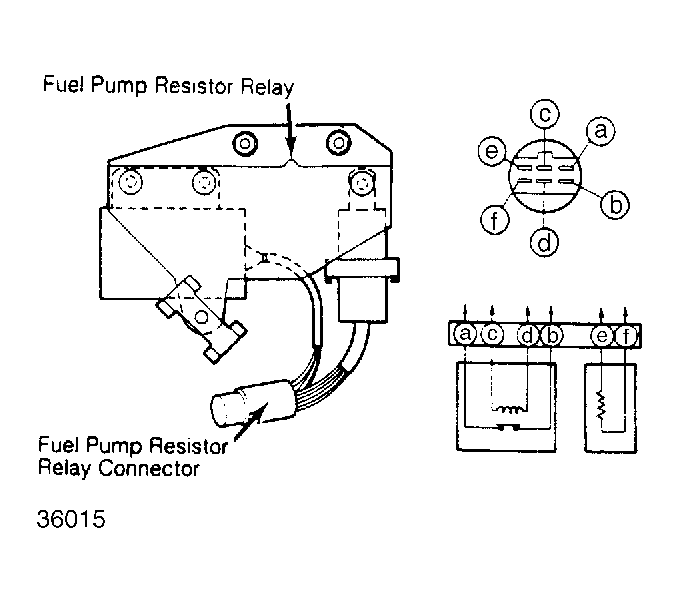

Remove air cleaner and airflow meter. Disconnect fuel pump resistor relay connector. See Fig 1 . Using an ohmmeter, test resistance across relay terminals. See FUEL PUMP RESISTOR RELAY RESISTANCE chart. If there are any abnormalities, replace fuel pump resistor relay.
| Terminals | Ohms |
|---|---|
| A to B | Zero |
| 9C to D | 68-92 |
| E to F | .64 |
