1986 Mazda RX-7 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Testing with Green Lamp Function

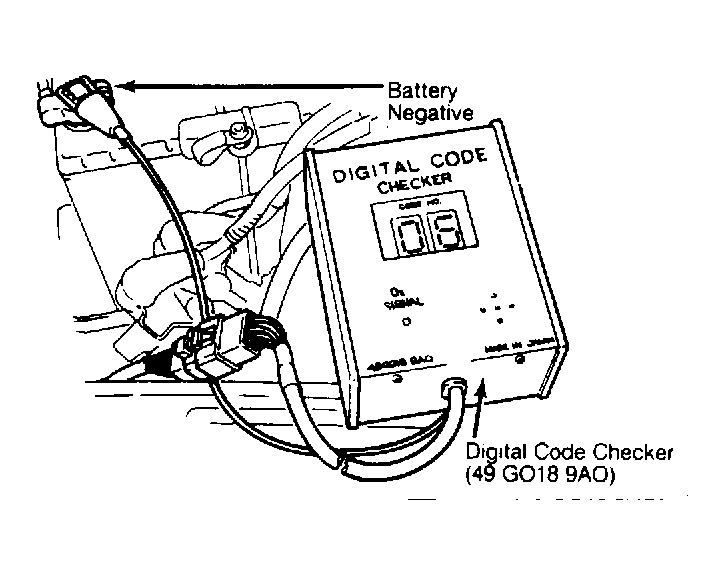

- The Green lamp function on the digital code checker is used to test O2 sensor signal. Different Green light modes indicate proper or improper mixture ratios as sensed by the O2 sensor. Before testing O2 sensor, disconnect neutral switch connector. Start and run engine at idle speed. Disconnect throttle sensor connector. See Fig 2 . Digital code checker should read Code 6 with Green lamp on.
