1986 Mazda RX-7 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Digital Code Checker Code Illumination Charts

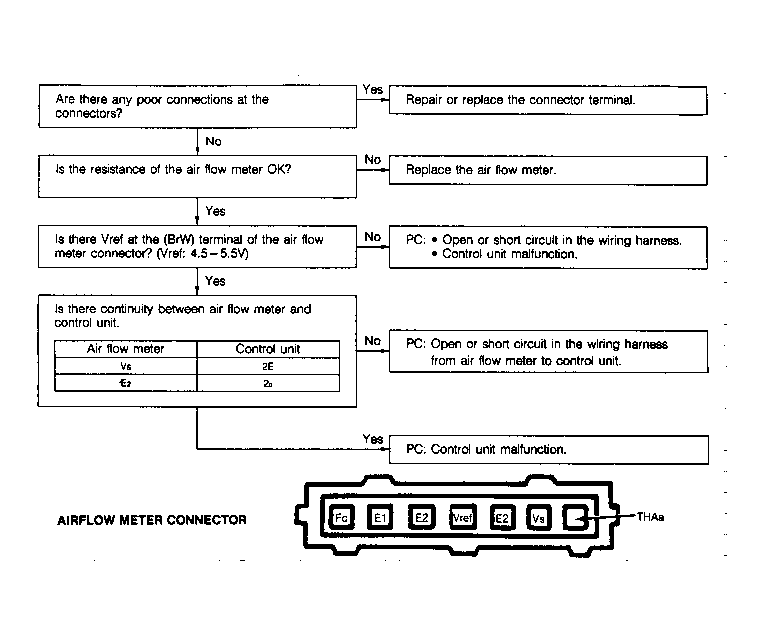

Fig 1: Digital Code Checker Code Illumination Chart (Code 2)
G61582Courtesy of MAZDA MOTORS CORP.
AIR FLOW METER RESISTANCE

Terminals Temperature Setting Resistance (Ohms)
E2 & Vs N/A 50-500
E2 & Vref N/A 200-500
E1 & FC N/A Open
E2 & THA -20°C (-4°F) 10,000-20,000
E2 & THA 0°C (32°F) 4,000-7,000
E2 & THA 20°C (68°F) 2,000-3,000
E2 & THA 40°C (104°F) 900-1,300
E2 & THA 60°C (140°F) 400-700

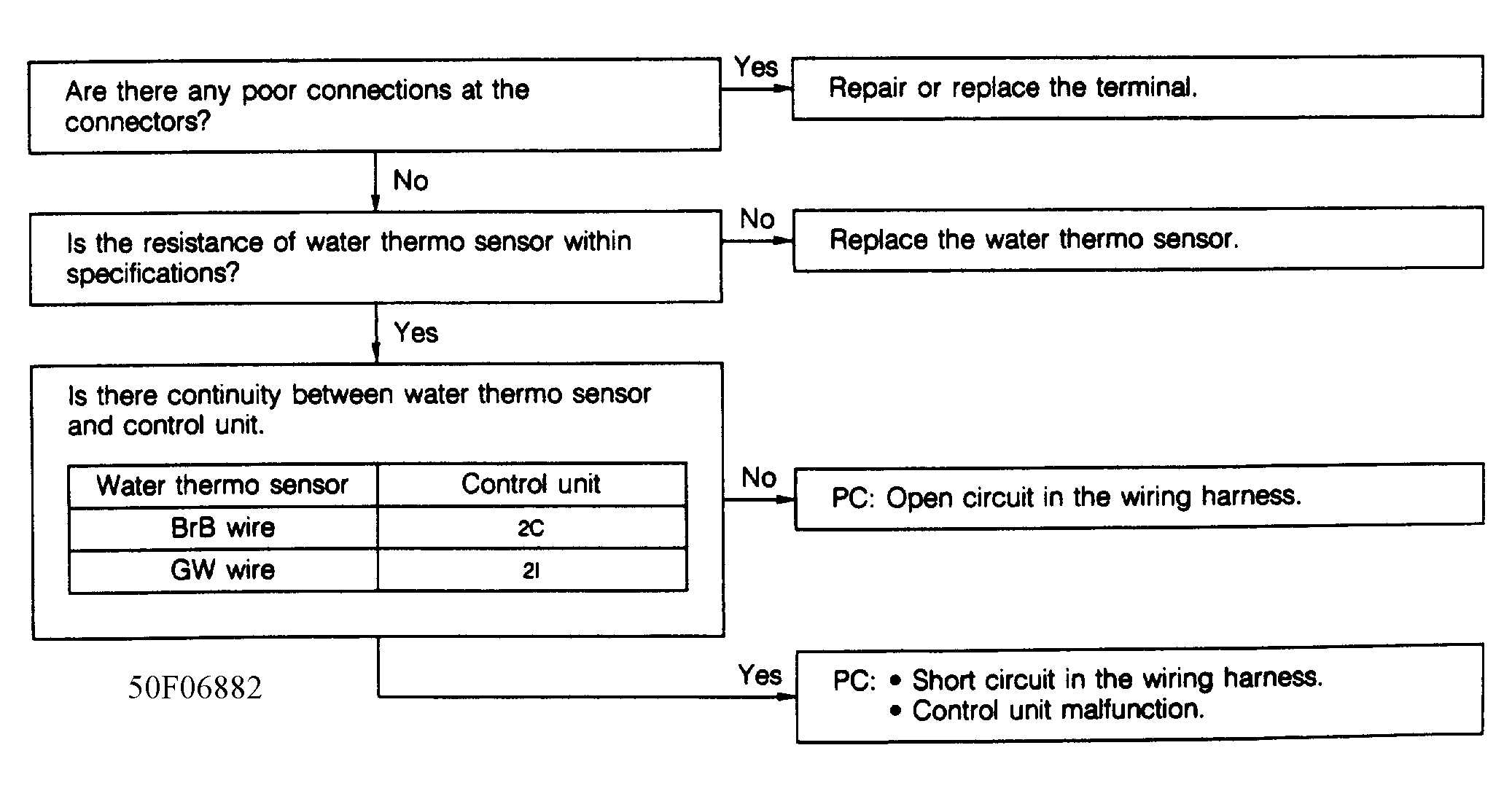

Fig 2: Digital Code Checker Code Illumination Chart (Code 3)
G50F06882Courtesy of MAZDA MOTORS CORP.
WATER THERMO SENSOR RESISTANCE

Water Temperature Resistance (kOhms)
-20°C (-4°F) 16.2 +/- 1.62
20°C (68°F) 2.45 +/- 0.24
80°C (176°F) 0.32 +/- 0.032

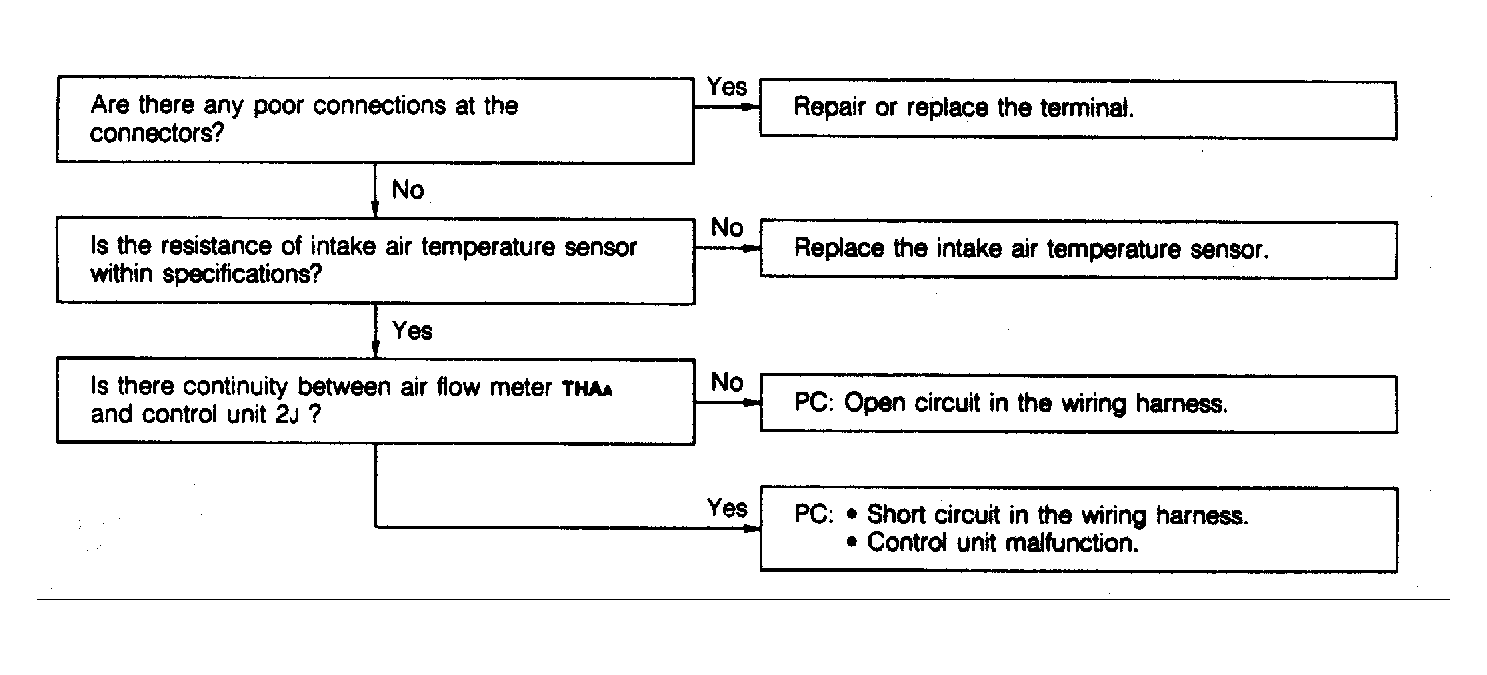

Fig 3: Digital Code Checker Code Illumination Chart (Code 4)
G61583Courtesy of MAZDA MOTORS CORP.
INTAKE AIR TEMPERATURE SESNOR RESISTANCE

Terminals Temperature Settings Resistance (Ohms)
E2 & THA -20°C (-4°F) 10,000-20,000
E2 & THA 0°C (32°F) 4,000-7,000
E2 & THA 20°C (68°F) 2,000-3,000
E2 & THA 40°C (104°F) 900-1,300
E2 & THA 60°C (140°F) 400-700

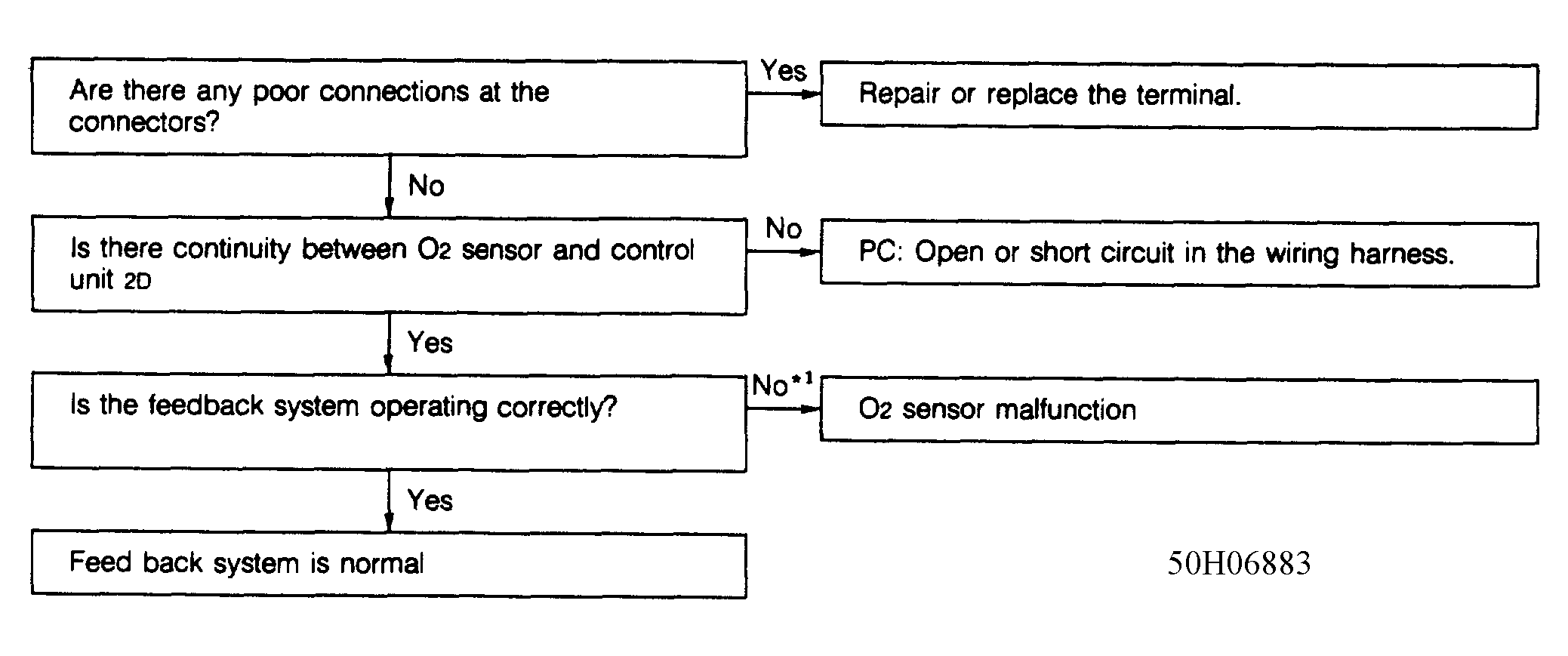

Fig 4: Digital Code Checker Code Illumination Chart (Code 5)
G50H06883Courtesy of MAZDA MOTORS CORP.
FEEDBACK SYSTEM

Green Lamp Air Fuel Ratio
ON Too Rich
ON & OFF Best
OFF Too Lean

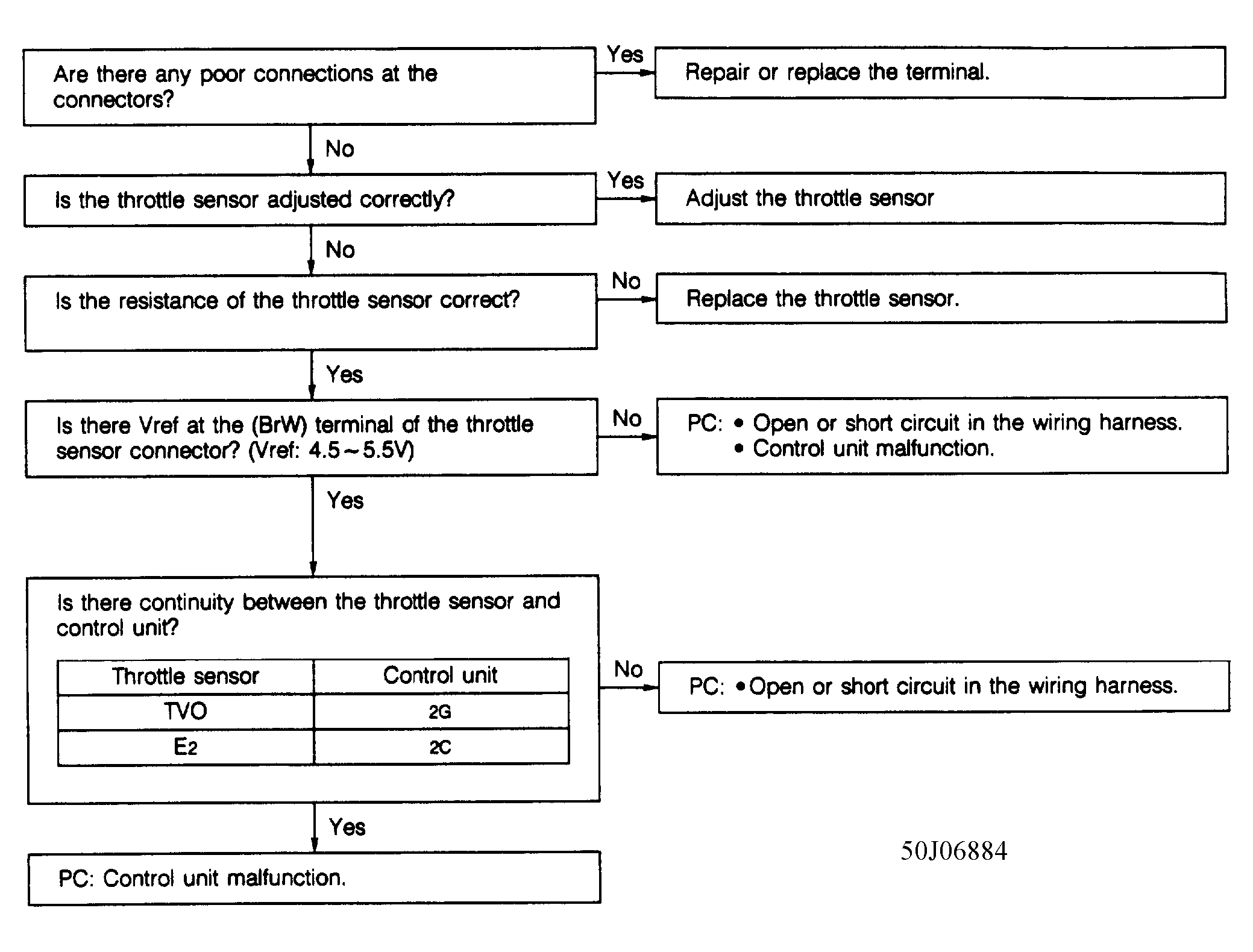

Fig 5: Digital Code Checker Code Illumination Chart (Code 6)
G50J06884Courtesy of MAZDA MOTORS CORP.
THROTTLE SENSOR RESISTANCE

Throttle Opening Resistance (kOhms)
Idle Position Approx. 1
Full Open 5 +/- 1
