1986 Mazda RX-7 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Digital Code Checker Code Illumination Chart

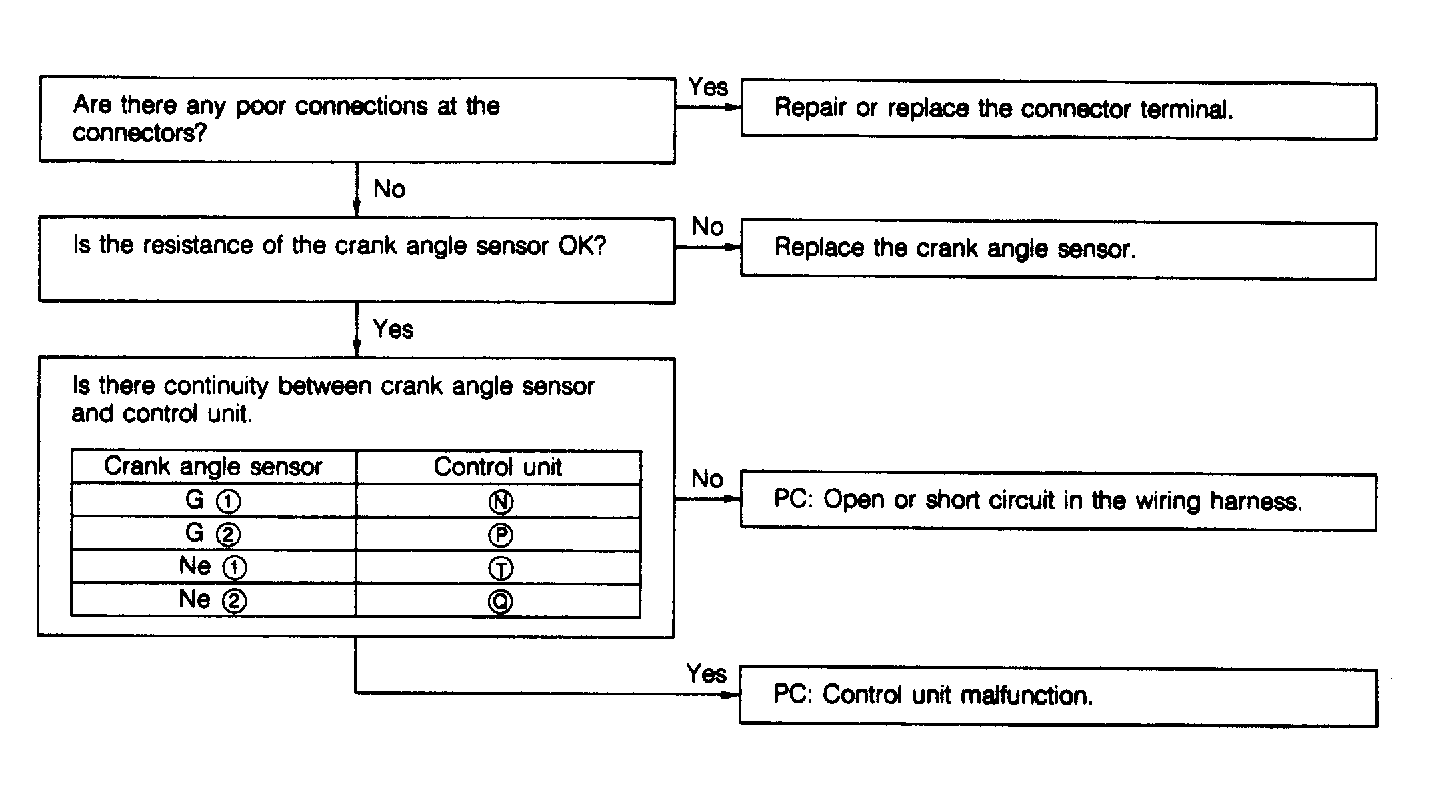

CRANK ANGLE SENSOR RESISTANCE
| Terminal | Resistance (Ohms) |
|---|---|
| G1 (B) - G2 (G) | 110-210 |
| Ne1 (W) - Ne2 (R) | 110-210 |
