Air Injection System: Operation

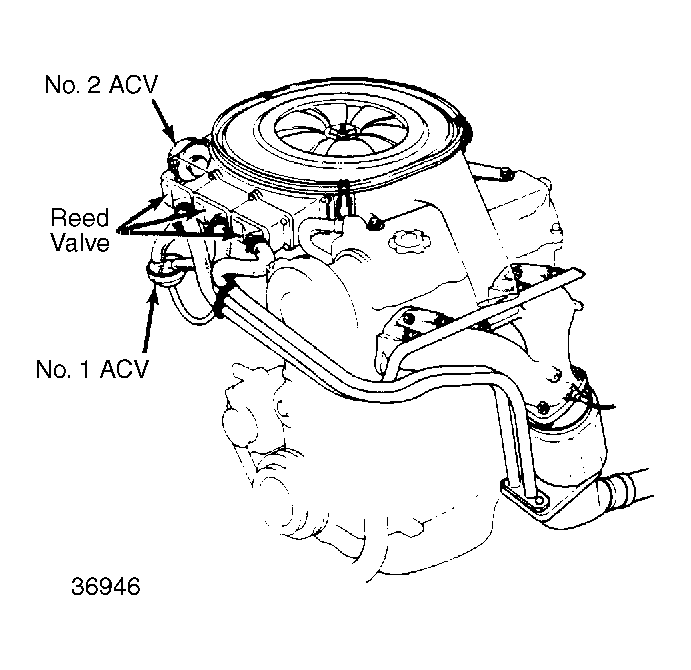

When exhaust system pressure is less than atmospheric pressure, reed valve is opened to incoming air. When exhaust pressure exceeds atmospheric pressure, reed valve is closed to incoming air. This valve also acts as a check valve.
Air control valves are used to help control and govern the flow of air. Air control valve(s) are regulated primarily by the engine RPM, through the use of engine vacuum.
