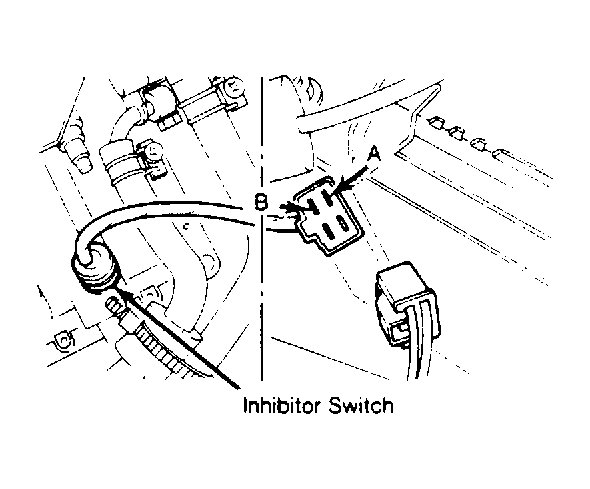

Inhibitor Switch: 626
Disconnect wiring harness from switch. Using an ohmmeter, check continuity between terminals "A" and "B". Continuity should be indicated when transmission is in "P" or "N". No continuity should exist when transmission is placed in any other range. If readings are incorrect, replace switch.
