Airflow Meter Potentiometer

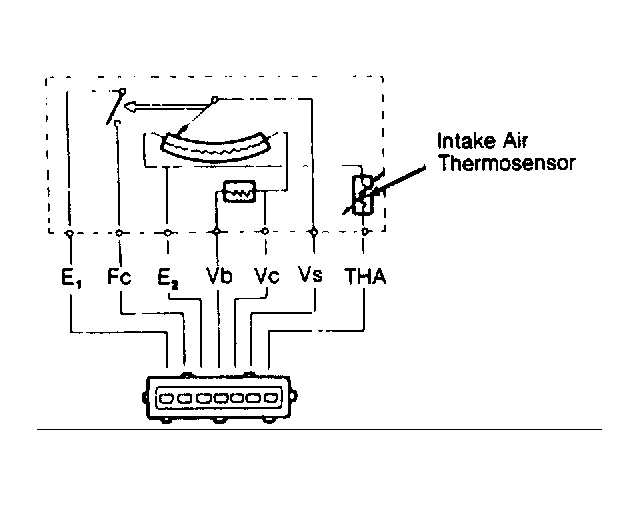

With ignition off, remove connector and check resistance between terminals. If resistance is not within specifications given in AIRFLOW METER SPECIFICATIONS table, replace airflow meter assembly. SeeFig 1 .
| Terminal | Resistance (Ohms) |
|---|---|
| E2-Vs | More than 20 |
| E2-Vc | 100-300 |
| E2-Vb | 200-400 |
| E1-Fc | Infinity |
