Throttle Position Sensor

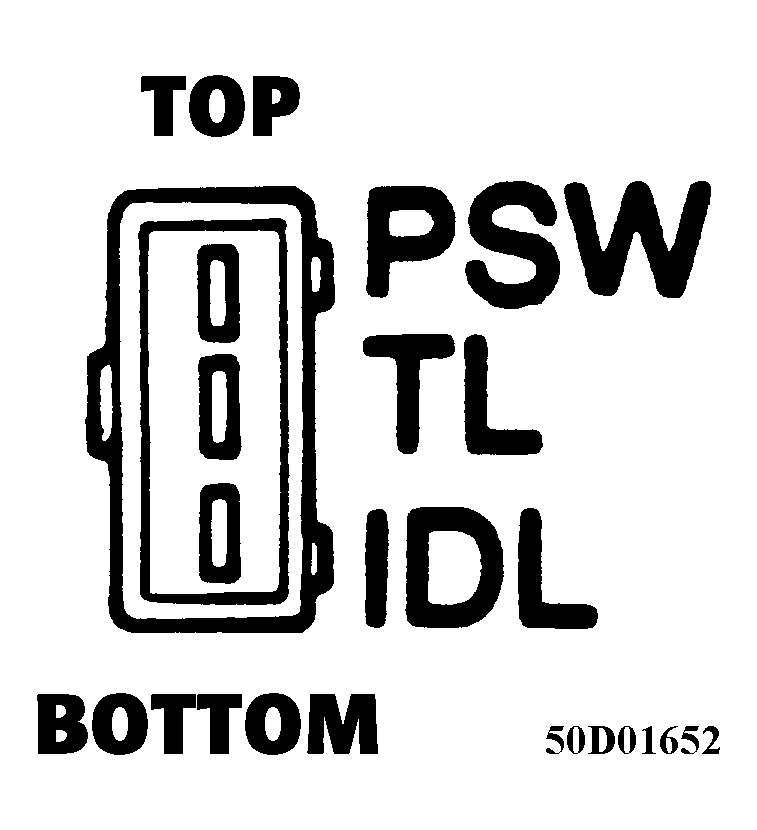

Disconnect throttle position sensor. Gradually open throttle valve and check continuity between terminals. See THROTTLE POSITION SENSOR SPECIFICATIONS table.
| Clearance Between Throttle Adjusting Screw And Stop Lever | Continuity Between IDL-TL | Continuity Between PSW-TL |
|---|---|---|
| .02" (.5 mm) | Yes | No |
| .03" (.7 mm) | No | No |
| Wide Open Throttle | No | Yes |
