1985 Mazda GLC BaseFACTORY OEM SERVICE PROCEDURE
ACV Solenoid Valve
- The ACV solenoid valve is located on the firewall behind carburetor. Solenoid valve controls vacuum signal to ACV when energized by control unit at idle.

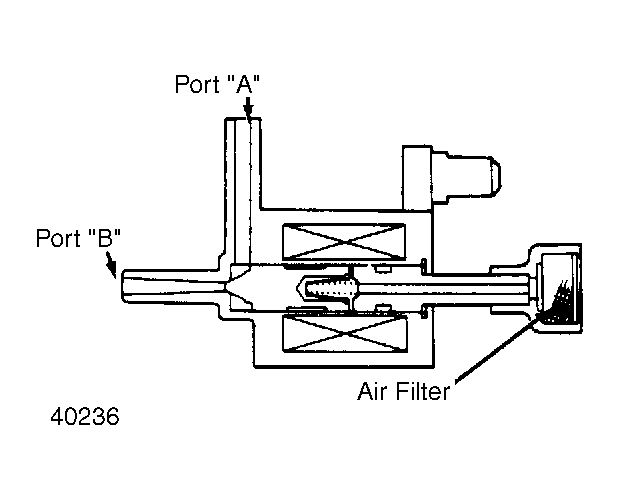

- Blow air through port "A" and verify that it exhausts through port "B". Unplug connector, apply battery voltage to terminal with Yellow/Black wire and ground terminal with Light Green wire. See Fig 1 .
- Blow air through port "A" of solenoid valve and verify that it exhausts out through valve air filter.
