1985 Mazda GLC BaseFACTORY OEM SERVICE PROCEDURE
No. 2 ACV (Federal Only)
- Run engine at normal operating temperature. Remove air cleaner and element. Set engine speed to 1500 RPM. Place a piece of paper over the No. 2 ACV inlet port and verify that no air is being drawn in.CAUTION: Grounding Black/White terminal will blow ignition system fuse.

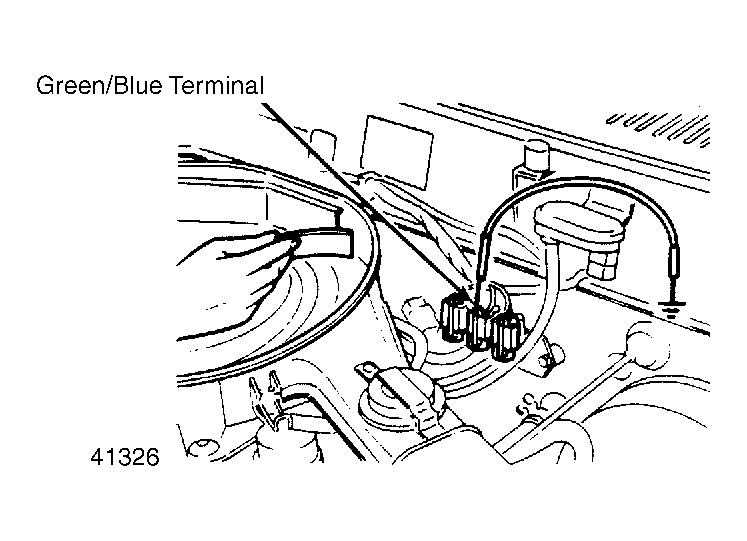

- Ground the Green/Blue wire terminal of 3-way solenoid valve with a jumper wire. Verify that air is being drawn into No. 2 inlet port of valve. See Fig 1 .
