1985 Mazda 626 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Vacuum Sensor

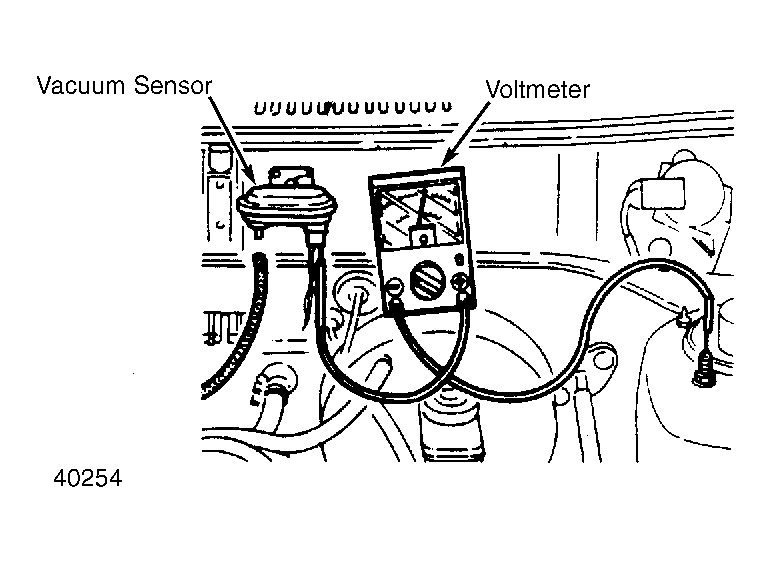

- Start engine and run at idle. Connect 1 voltmeter lead to Blue wire terminal of sensor connector and other lead to ground.
- Voltmeter should read approximately 1 volt. Disconnect vacuum hose from sensor. Reading should change to 4 volts. See Fig 1 .
