1984 Mazda B2200FACTORY OEM SERVICE PROCEDURE
Rotary Engine Models

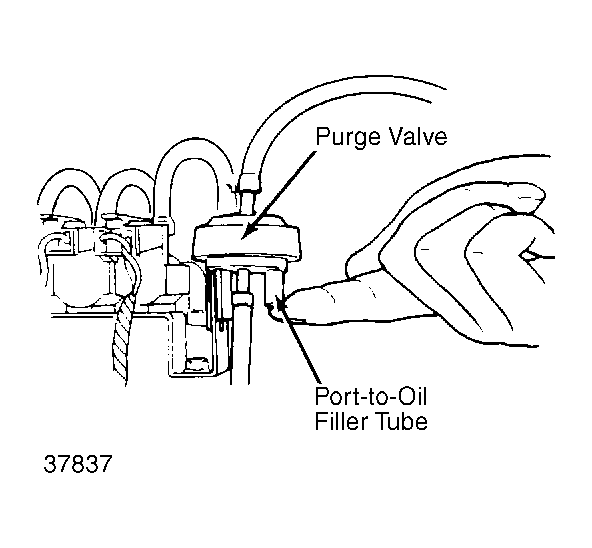

- Disconnect purge valve-to-oil filler tube hose from purge valve. Start engine and run at idle speed. Place finger over open purge valve port and feel that no vacuum is present. See Fig 1 .
- Increase engine speed to 2000 RPM and feel that vacuum is present at purge valve port. If valve does not operate as outlined, replace purge valve.
