1983 Mazda GLC BaseFACTORY OEM SERVICE PROCEDURE
Check & Cut Valve

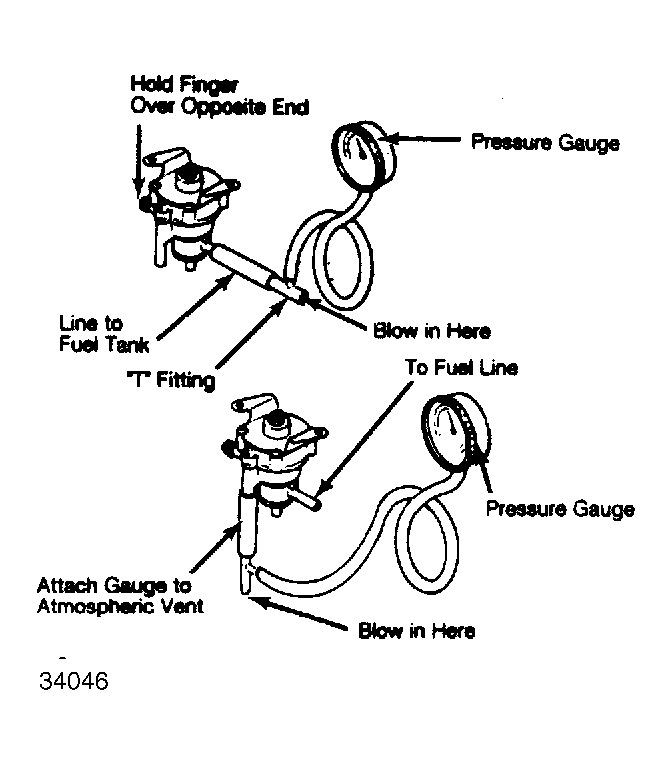

- Remove check and cut valve from lines. Connect a pressure gauge with "T" on nipple leading to fuel tank. Hold finger over opposite nipple. See Fig 1 .
- Blow through open end of "T" fitting. When pressure gauge reads .78-1.0 psi (.06-.07 kg/cm2 ), valve should open.
- Remove "T" fitting and gauge from fuel tank nipple and connect to nipple at bottom of valve (atmosphere vent). Valve should be located horizontally.
- Repeat test. Valve should open when pressure gauge reads .14-.71 psi (.01-.05 kg/cm2 ). If valve does not operate as described, replace check and cut valve.
