1982 Mazda RX-7 GSL, Automatic TransFACTORY OEM SERVICE PROCEDURE
Man. Trans. Only

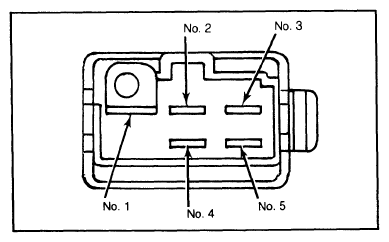

- Disconnect electrical connector from air conditioner relay. Using an ohmmeter, check continuity between terminals.
- With engine off and no power applied, there should be continuity between No. 1 and No. 5. There should be no continuity between No. 1 and No. 3.
- Connect a wire from battery positive post to terminal No. 2 and battery negative post to terminal No. 4. There should be continuity between No. 1 and No. 3. There should be no continuity between No. 1 and No. 5.
