1982 Mazda RX-7 GSL, Automatic TransFACTORY OEM SERVICE PROCEDURE
No. 1 Anti-AFTERBURN Valve
- Warm engine to normal operating temperature and ensure engine operates smoothly at idle. Stop engine. Disconnect air pump-to-air control hose at air pump.

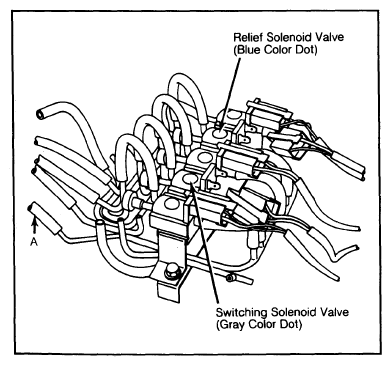

- Disconnect electrical connectors from relief solenoid valve (Blue color dot) and switching solenoid valve (Gray color dot). Start engine and run at idle. Place finger over air pump-to-air control hose.
- Air should not be drawn in and idle speed should not change. Disconnect vacuum hose "A"; speed should return to normal idle. If valve does not respond as outlined, replace No. 1 anti-afterburn valve.
