1982 Mazda RX-7 GSL, Automatic TransFACTORY OEM SERVICE PROCEDURE
Choke Relay

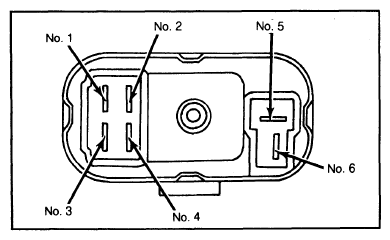

- Disconnect coupler from relay. With engine off and no power applied, check continuity of terminals.
- There should be continuity between No. 1 and No. 2. There should be no continuity between No. 3 and No. 4.
- Connect a wire from battery positive post to terminal No. 6 and battery negative post to terminal No. 5.
- There should be continuity between No. 3 and No. 4. There should be no continuity between No. 1 and No. 2.
