1982 Mazda B2000 BaseFACTORY OEM SERVICE PROCEDURE
3-Way Solenoid Valve

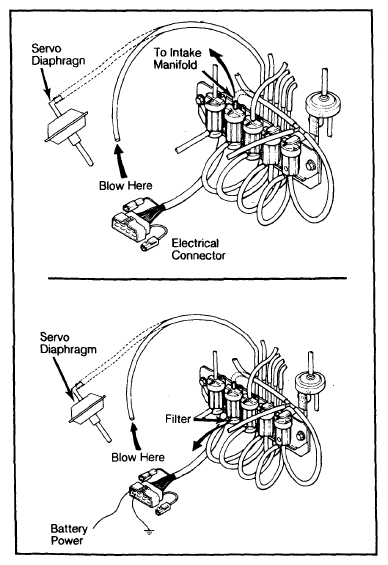

- Disconnect vacuum sensing tube at servo diaphragm. Disconnect intake manifold vacuum tube at solenoid valve. On 626 models, disconnect electrical connector and connect battery power as shown in Fig 1.

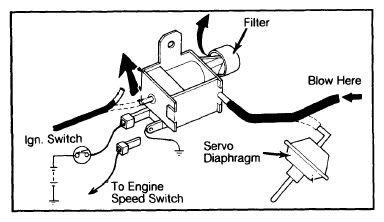

- On all other models, disconnect wire which comes from engine speed switch and ground terminal as shown in Fig 2.
- Turn ignition switch "ON". Blow air through hose disconnected from servo diaphragm; air should escape at solenoid filter.
- Turn ignition switch "OFF" and blow through hose again; air should escape from intake manifold vacuum inlet port. If valve does not respond as outlined, replace 3-way solenoid valve.
