1980 Mazda GLC Base, Automatic TransFACTORY OEM SERVICE PROCEDURE
MAZDA Piston Engine Timing Control System: Notes

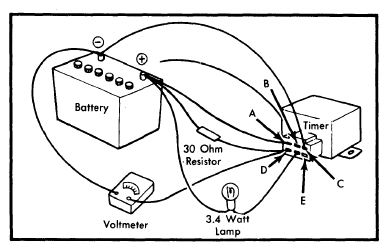

- Remove timer from under instrument panel on driver's side. Using jumper wire, connect terminal "A" to positive terminal of battery.
- Connect a 30 ohm resistor and voltmeter to terminal "D". Connect a 3.4 watt test lamp to terminal "E". Connect terminal "C" to negative battery terminal. Voltmeter should register more than 6 volts.
- Connect terminal "B" to positive battery terminal. Voltmeter should register less than 1 volt and test lamp should glow. After 2 minutes, voltmeter should register about 8 volts. If timer does not operate as described, replace timer.
