1980 Mazda B2000 BaseFACTORY OEM SERVICE PROCEDURE

Timer Test (GLC Only)

  1. To check timer (located under instrument panel on left side panel), connect wires to terminals "A", "B", and "C" of timer. See Fig 1. Connect a wire with a 30, 000 ohm resistor to terminal "D". Connect a wire with a 3.4 watt test lamp to terminal "E". Connect a voltmeter to terminal "D" and to negative battery terminal.
  2. Connect wires from terminals "A", "D", and "E" to battery positive terminal. Connect wire from terminal "C" to battery negative terminal. Voltmeter should show more than 6 volts.

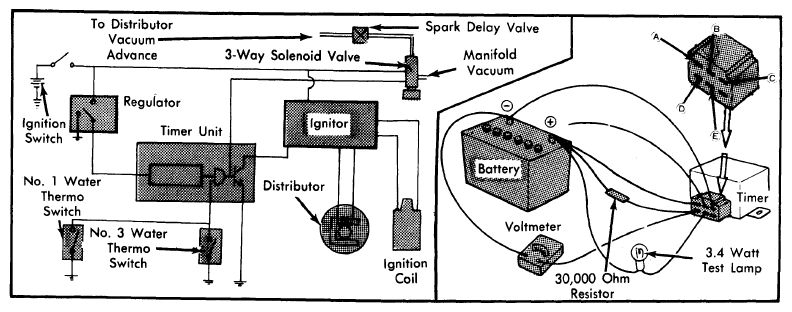

    Fig 1: Schematic of GLC Dual Timing System and Voltmeter Hookup for Timer Test
    G09344961Courtesy of NOT AVAILABLE
  3. Then, connect wire from terminal "B" to battery positive terminal. Instantly, voltmeter should show less than 1 volt and test lamp should light. After approximately 105-135 seconds from showing 1 volt, voltmeter should indicate 8 volts. If not, replace timer.
