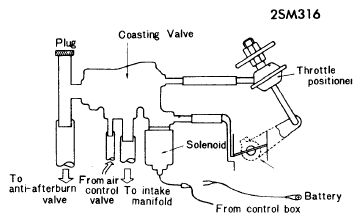

Throttle Positioner
With air hose from coasting valve air inlet to air cleaner disconnected, plug air inlet. Start engine and run at 2000 RPM, proceed as follows:
- Disconnect wire to coasting valve and connect a wire directly from battery to coasting valve solenoid. Release the throttle suddenly. RPM should drop to 950±50 RPM.
- If engine speed does not stabilize at this speed, adjust throttle positioner. When direct lead from battery is disconnected from coasting valve solenoid, engine speed should drop to 800 RPM.
