2021 Lincoln Aviator Base, AWDFACTORY OEM SERVICE PROCEDURE

All Terrain Control Module (ATCM): Removal

NOTE: Removal steps in this procedure may contain installation details.
  • Selectable Drive Mode Switch (Console rotary type)

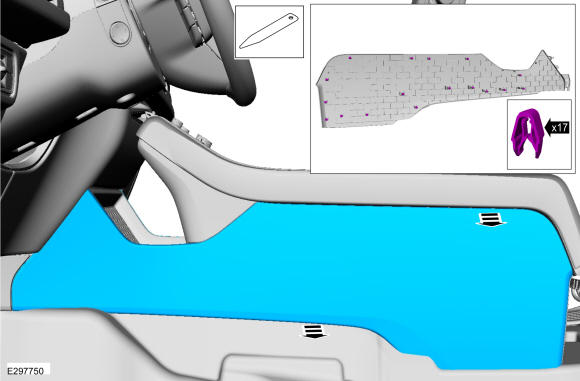

  1. Release the retainers and remove the LH floor console side trim panel. Use the General Equipment: Interior Trim Remover
    GFD533175Courtesy of FORD MOTOR COMPANY
  2. Release the retainers and remove the RH floor console side trim panel. Use the General Equipment: Interior Trim Remover
    GFD533175Courtesy of FORD MOTOR COMPANY
  3. Open the center console arm rest panel.

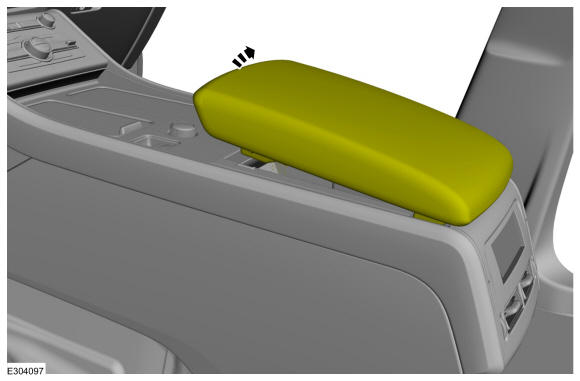

    GFD533204Courtesy of FORD MOTOR COMPANY
  4. Remove the FCIMB. Refer to: Front Controls Interface Module B (FCIMB) .
  5. Remove both top console side panel bolts.

    Torque: 22 lb.in (2.5 Nm)

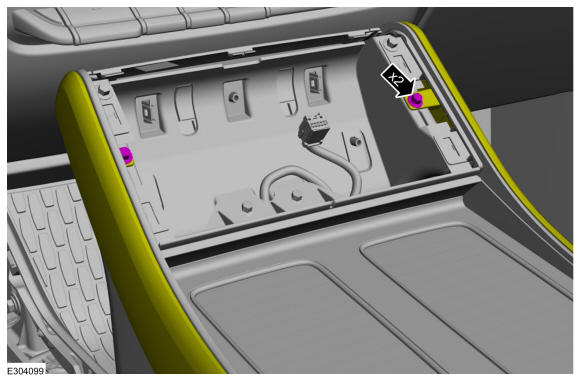

    GFD533205Courtesy of FORD MOTOR COMPANY
  6. Remove both top console side trim panels.

    • Remove the bolts. Use the General Equipment: Interior Trim Remover

      Torque: 22 lb.in (2.5 Nm)

    • Release the retainers and remove the RH and LH floor console side trim panels.

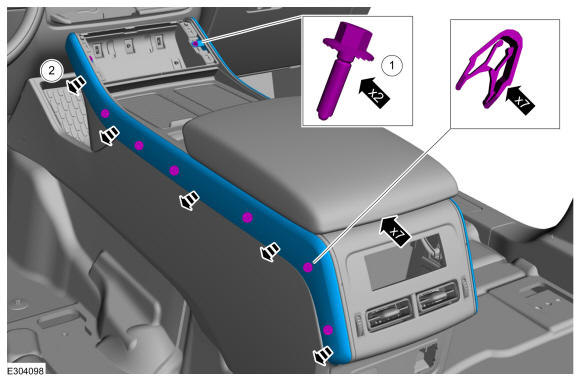

    GFD533206Courtesy of FORD MOTOR COMPANY
  7. Remove both floor console bolts.

    • Remove the bolts.

      Torque: 28 lb.in (3.2 Nm)

    • Remove the screws.

      Torque: 17 lb.in (1.9 Nm)

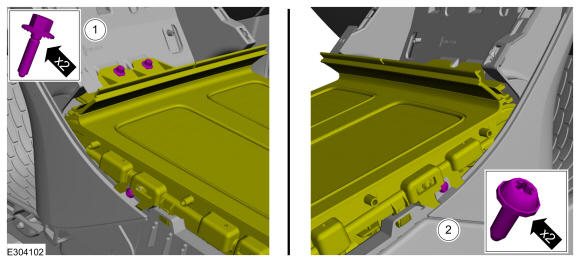

    GFD533207Courtesy of FORD MOTOR COMPANY
  8. Release the clips, detach the console top panel, disconnect the electrical connectors and remove the console top panel.

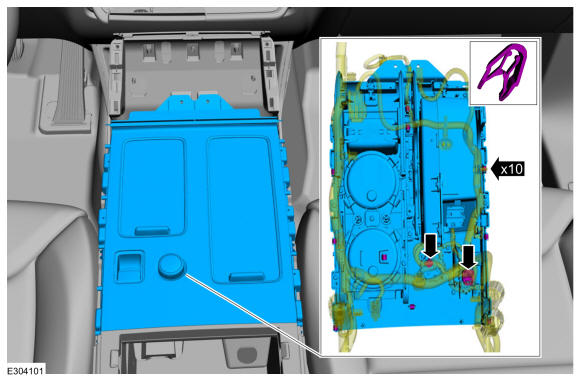

    GFD533208Courtesy of FORD MOTOR COMPANY
  9. Remove the module.

    1. Remove the screws.
    2. Remove the switch.

      Torque: 17 lb.in (1.9 Nm)

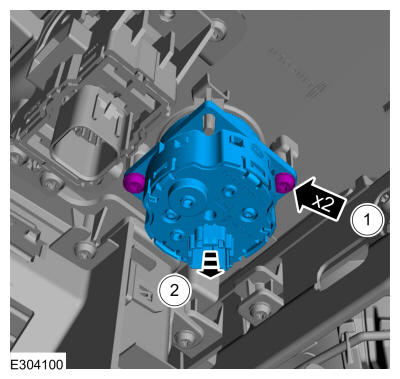

GFD533209Courtesy of FORD MOTOR COMPANY
