2013 Lincoln Navigator Base, RWDFACTORY OEM SERVICE PROCEDURE

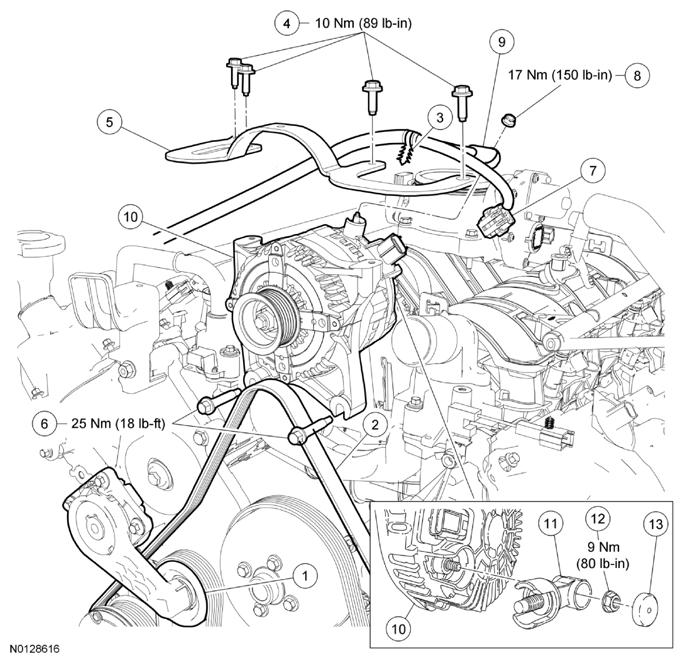

Removal And Installation: Generator: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | 6B209 | Front End Accessory Drive (FEAD) belt tensioner |
| 2 | 8620 | FEAD belt |
| 3 | - | Generator harness locator |
| 4 | N807309 | Generator bracket bolts (4 required) |
| 5 | 10153 | Generator bracket |
| 6 | N811334 | Generator bolts (2 required) |
| 7 | - | Generator electrical connector (part of 14305) |
| 8 | W711953 | Generator B+ terminal nut |
| 9 | - | Generator B+ terminal (part of 12B637) |
| 10 | 10300 | Generator |
| 11 | 10329 | Radial arm adapter |
| 12 | - | Radial arm adapter nut (part of 10329) |
| 13 | - | Radial arm adapter cap (part of 10329) |
