2012 Lincoln Navigator 4WDFACTORY OEM SERVICE PROCEDURE
Removal and Installation

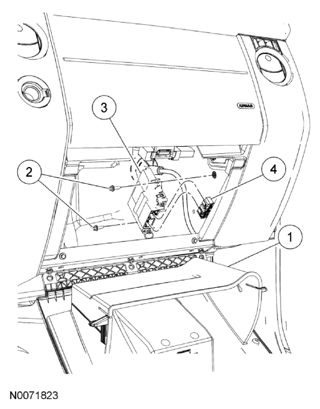

| Item | Part Number | Description |
|---|---|---|
| 1 | 06010 | Glove compartment assembly |
| 2 | W705314 | Screws |
| 3 | 7E453 | 4X4 control module |
| 4 | - | Connector (part of 12A581) |
- Lower the glove compartment assembly to gain access.
- Remove the two 4X4 control module screws.
- Disconnect the electrical connectors.
- Remove the 4X4 control module.
- To install, reverse the removal procedure.
