2012 Lincoln Navigator 4WDFACTORY OEM SERVICE PROCEDURE
Anti-Lock Brake System (ABS) Module: Notes
SPECIAL TOOLS CHART
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

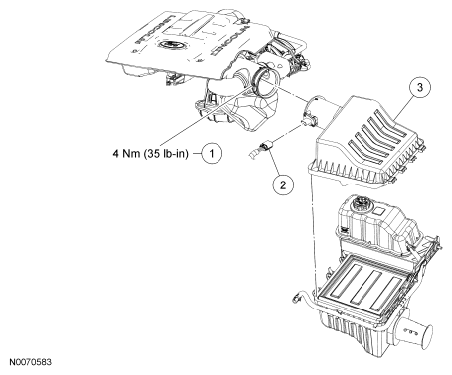

Fig 1: Air Cleaner Outlet Clamp, Housing Cover And Mass Air Flow Sensor Electrical Connector With Torque Specification
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Air Cleaner (ACL) outlet clamp (part of 9F805) |
| 2 | - | Mass Air Flow (MAF) sensor electrical connector (part of 14A464) |
| 3 | 9661 | ACL housing cover |

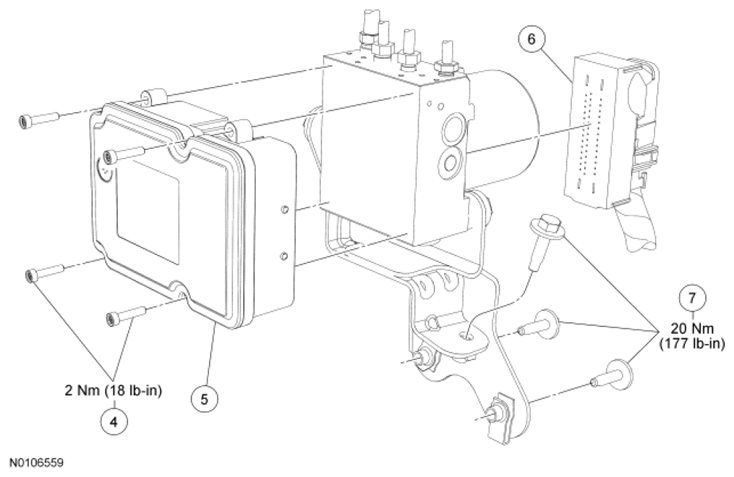

| Item | Part Number | Description |
|---|---|---|
| 4 | W302577 | ABS module bolts (4 required) |
| 5 | 2C219 | ABS module |
| 6 | - | ABS module electrical connector (part of 14A464) |
| 7 | W505434 | Hydraulic Control Unit (HCU) bracket-to-frame bolts (3 required) |
