2012 Lincoln Navigator 2WD V8-5.4LFACTORY OEM SERVICE PROCEDURE
Timing Cover

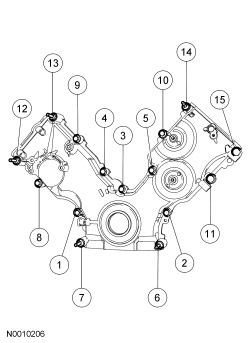

Tighten the 15 engine front cover fasteners in the sequence shown in 2 stages.
Stage 1: Tighten fasteners 1 through 15 to 25 Nm (18 lb-ft).
Stage 2: Tighten fasteners 6 and 7 to 48 Nm (35 lb-ft).
