2012 Lincoln Navigator 2WD V8-5.4LFACTORY OEM SERVICE PROCEDURE
Engine Specifications
Specifications
a Early build vehicle cooling systems are filled with Motorcraft(R) Premium Gold Engine Coolant. Late build vehicle cooling systems are filled with Motorcraft(R) Specialty Orange Engine Coolant. Do not mix coolant types. Mixing coolant types degrades the corrosion protection of the coolant. Failure to follow these instructions may damage the engine or cooling system.

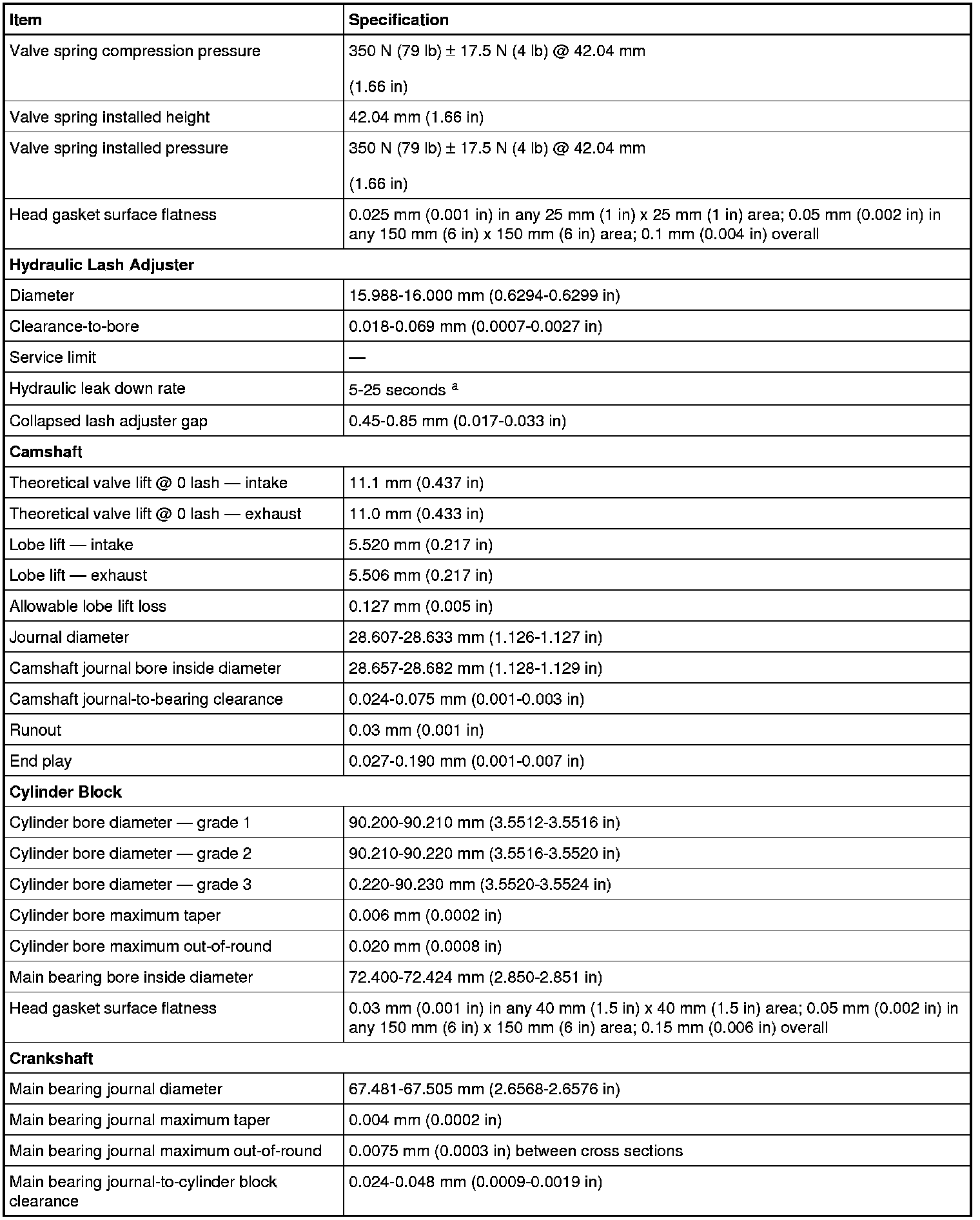

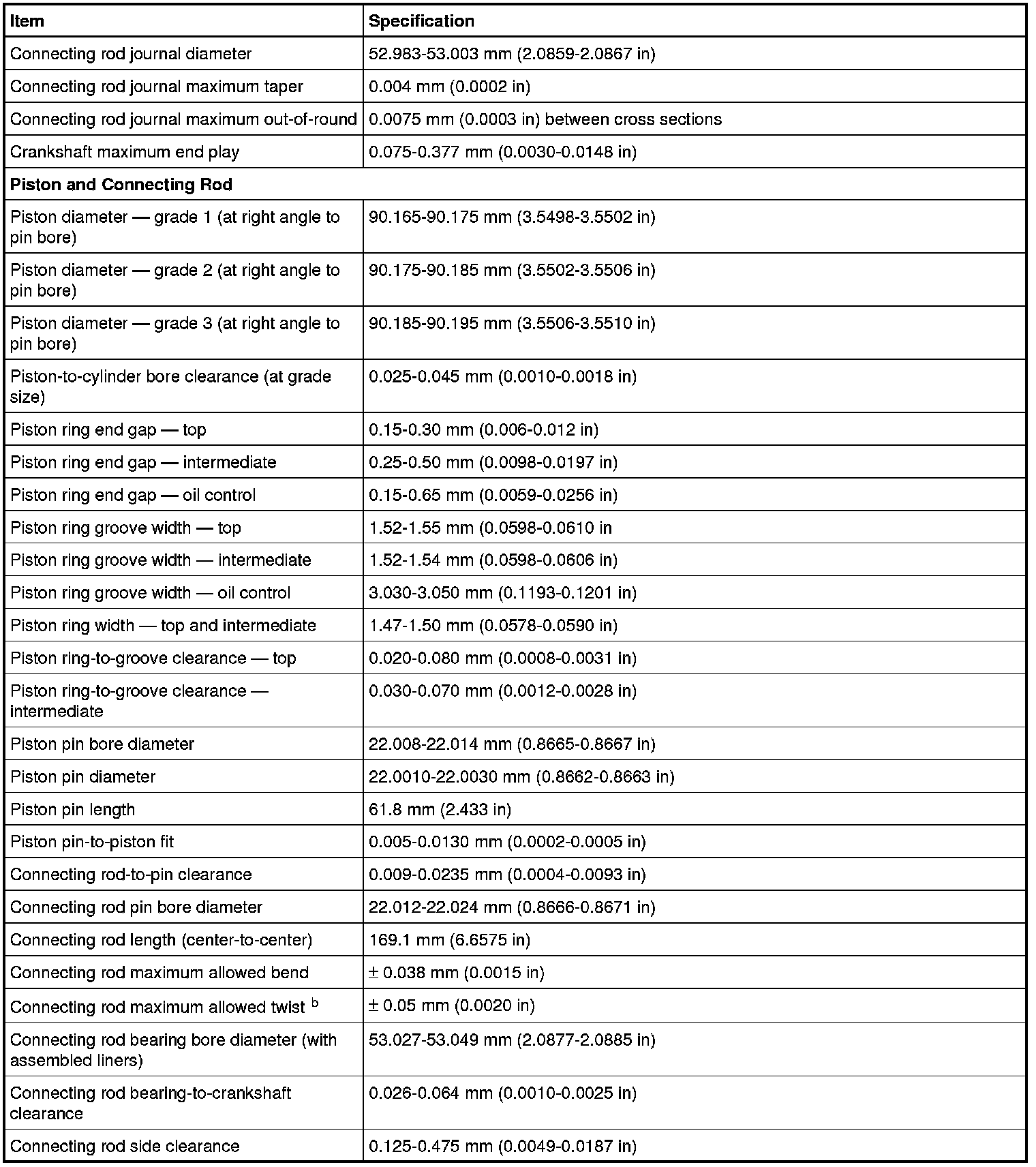

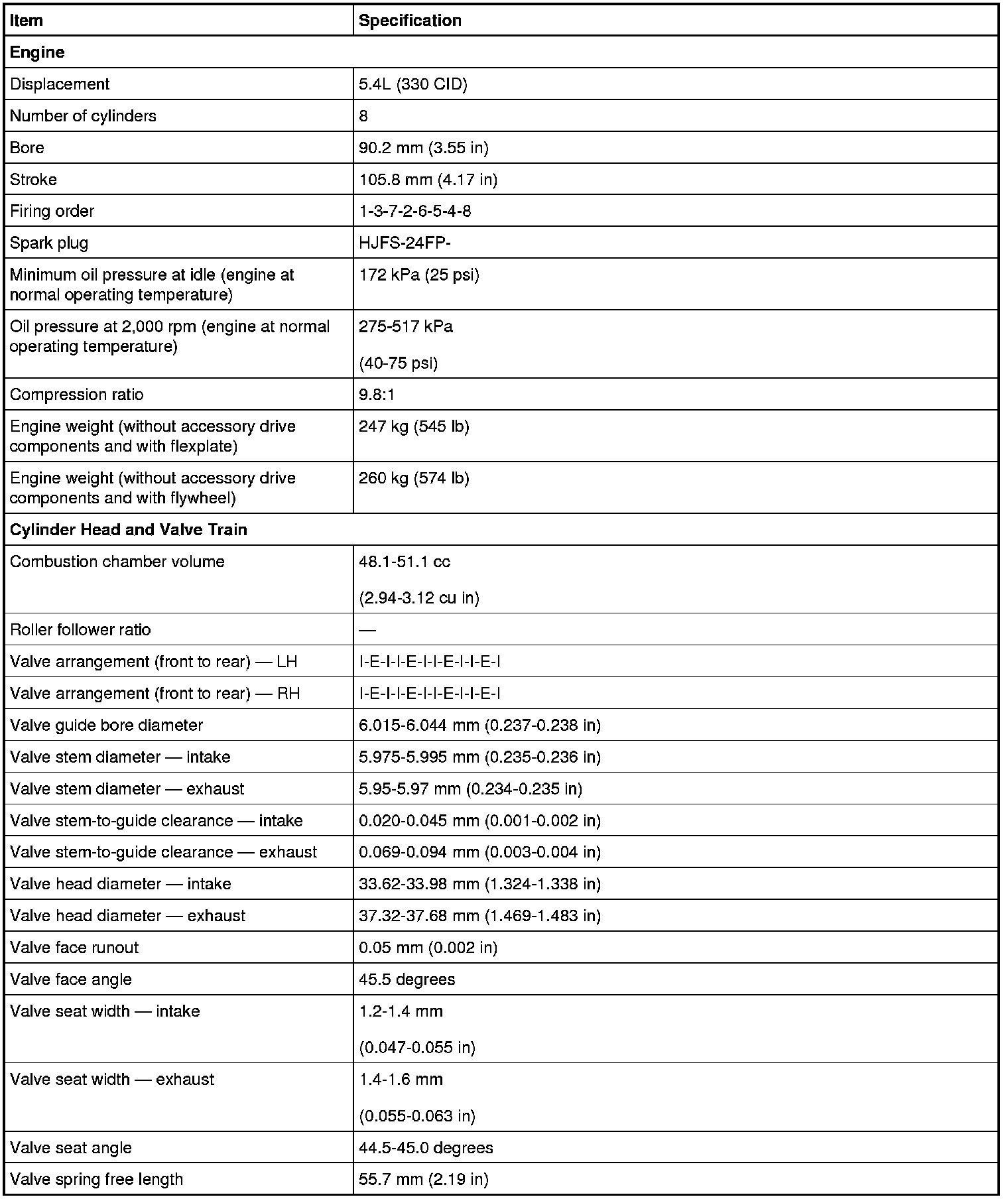

General Specifications
a The time required for the plunger to leak down 1.6 mm (0.062 in) of travel with 222 N force and leak-down fluid in the lash adjuster.
b The pin bore and crank bearing bore must be parallel and in the same vertical plane within the specified total difference when measured at the ends of a 203 mm bar, 105.5 mm on each side of rod centerline.

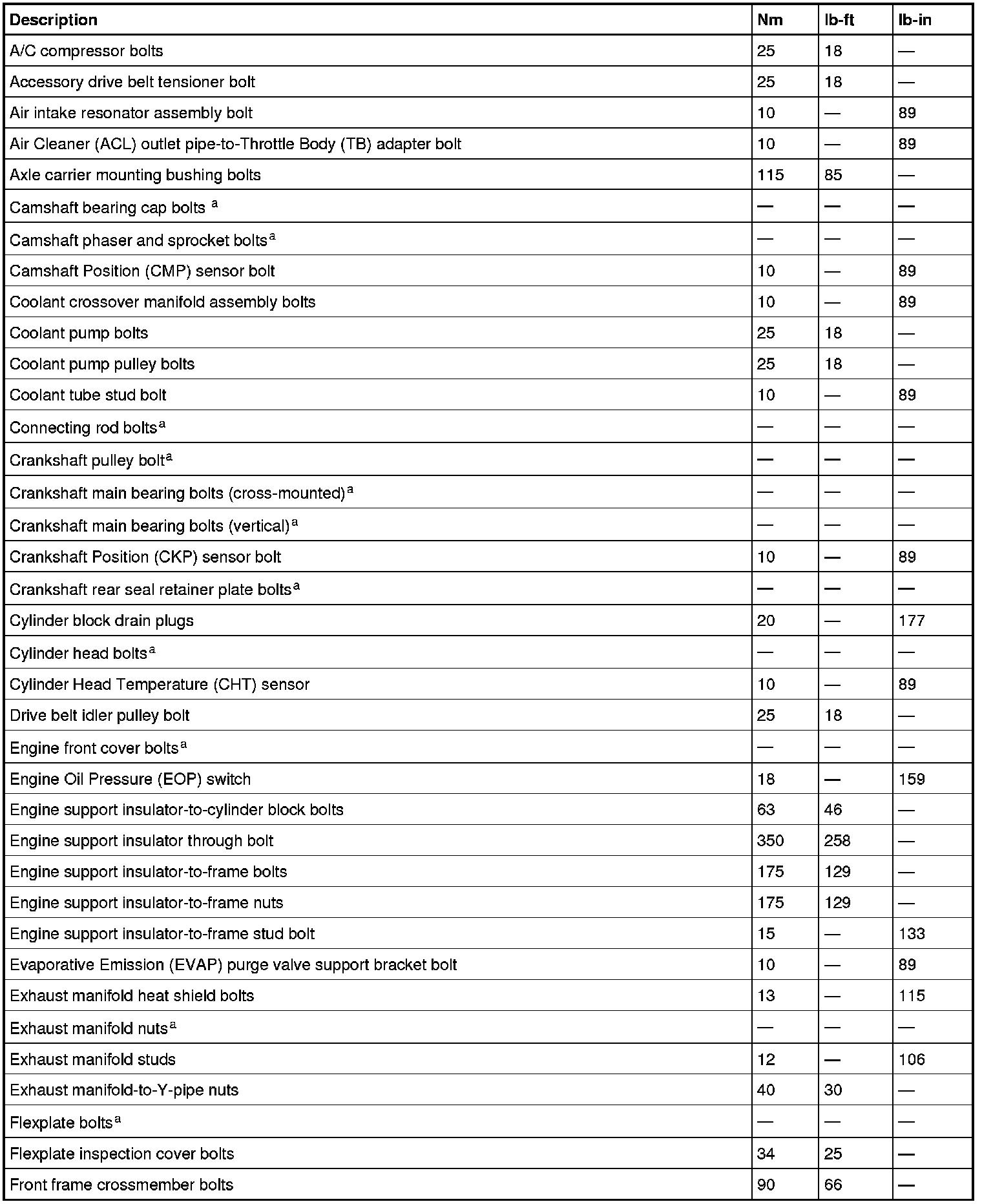

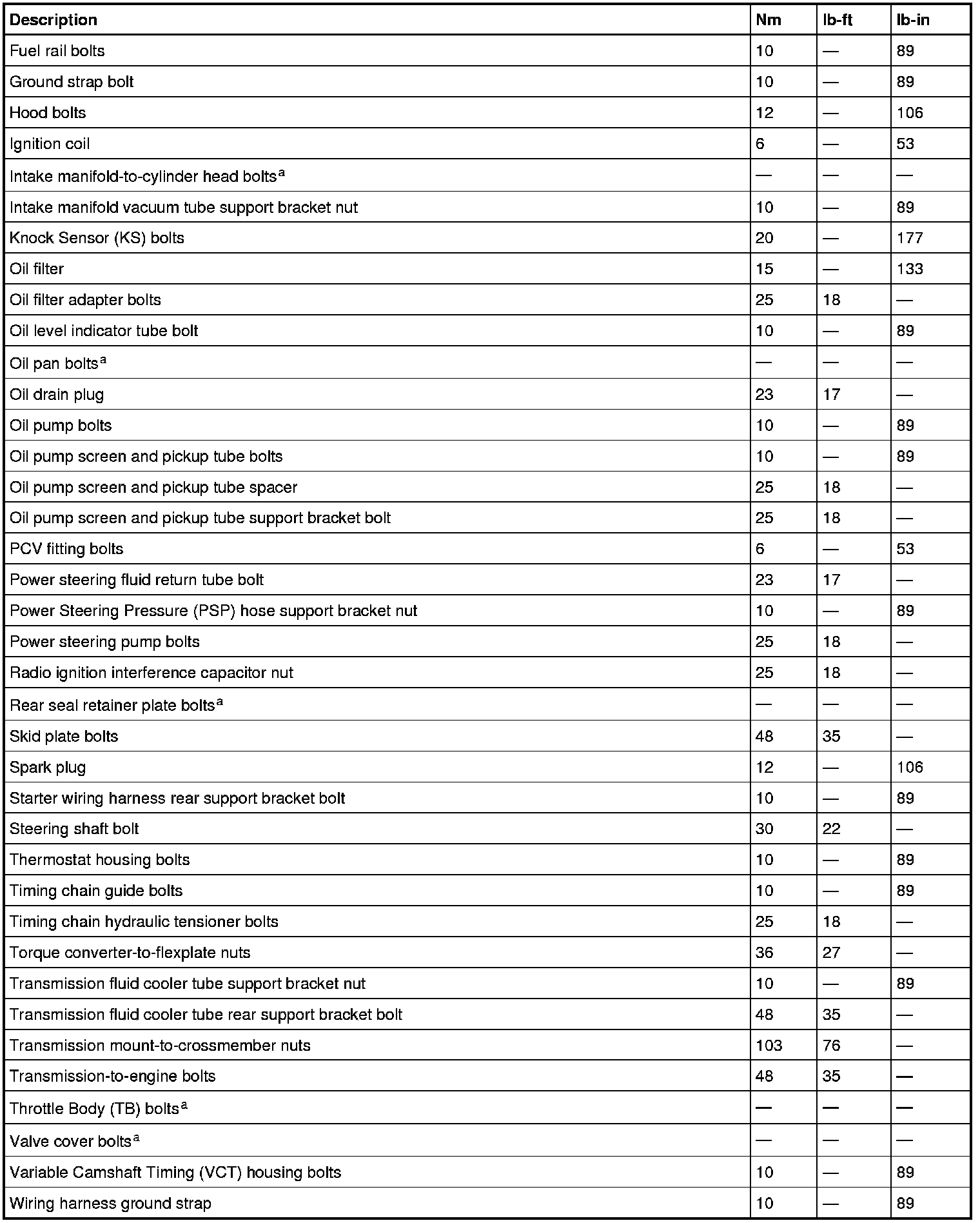

Torque Specifications
a Refer to the procedure in Engine.
