2012 Lincoln Navigator 2WD V8-5.4LFACTORY OEM SERVICE PROCEDURE

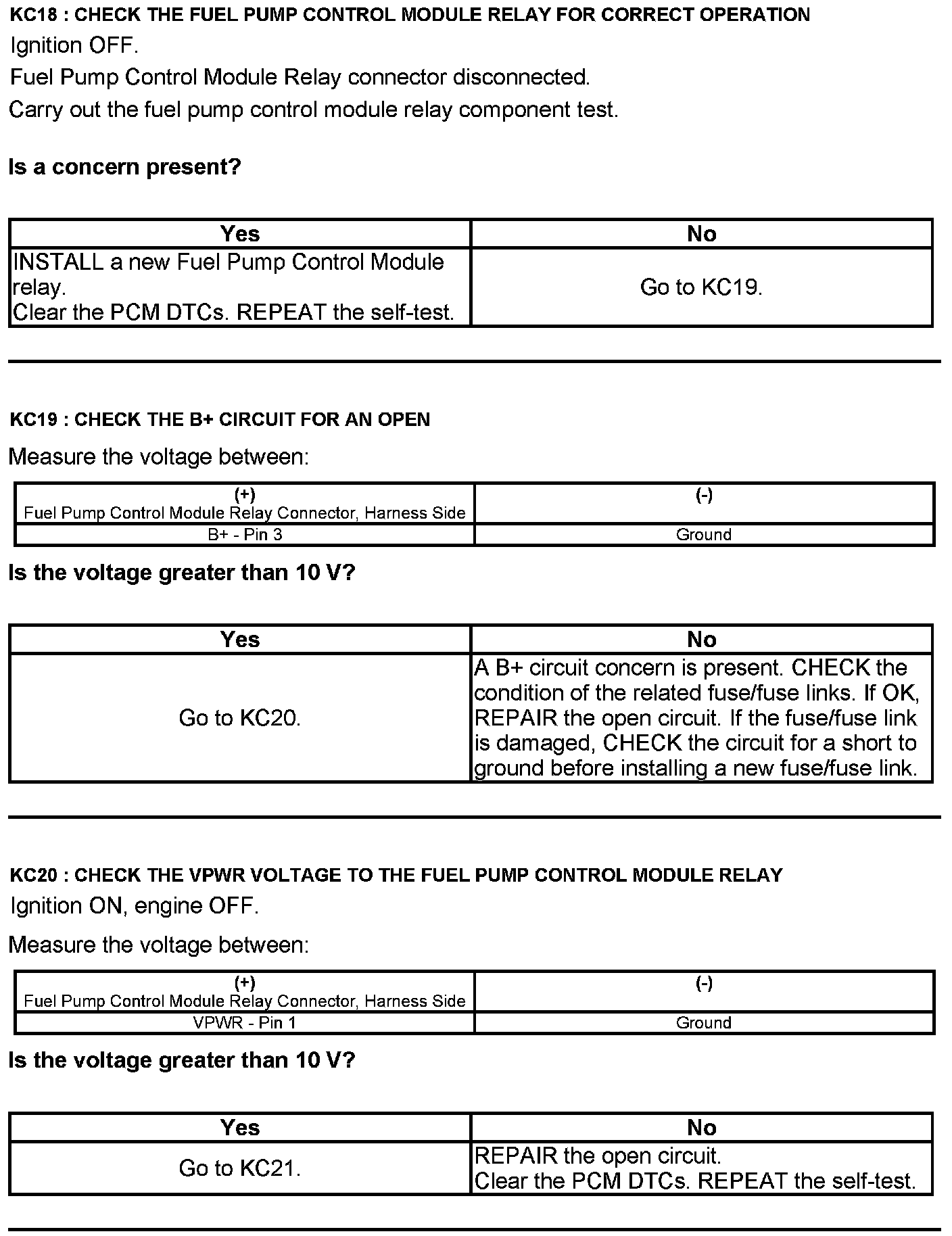

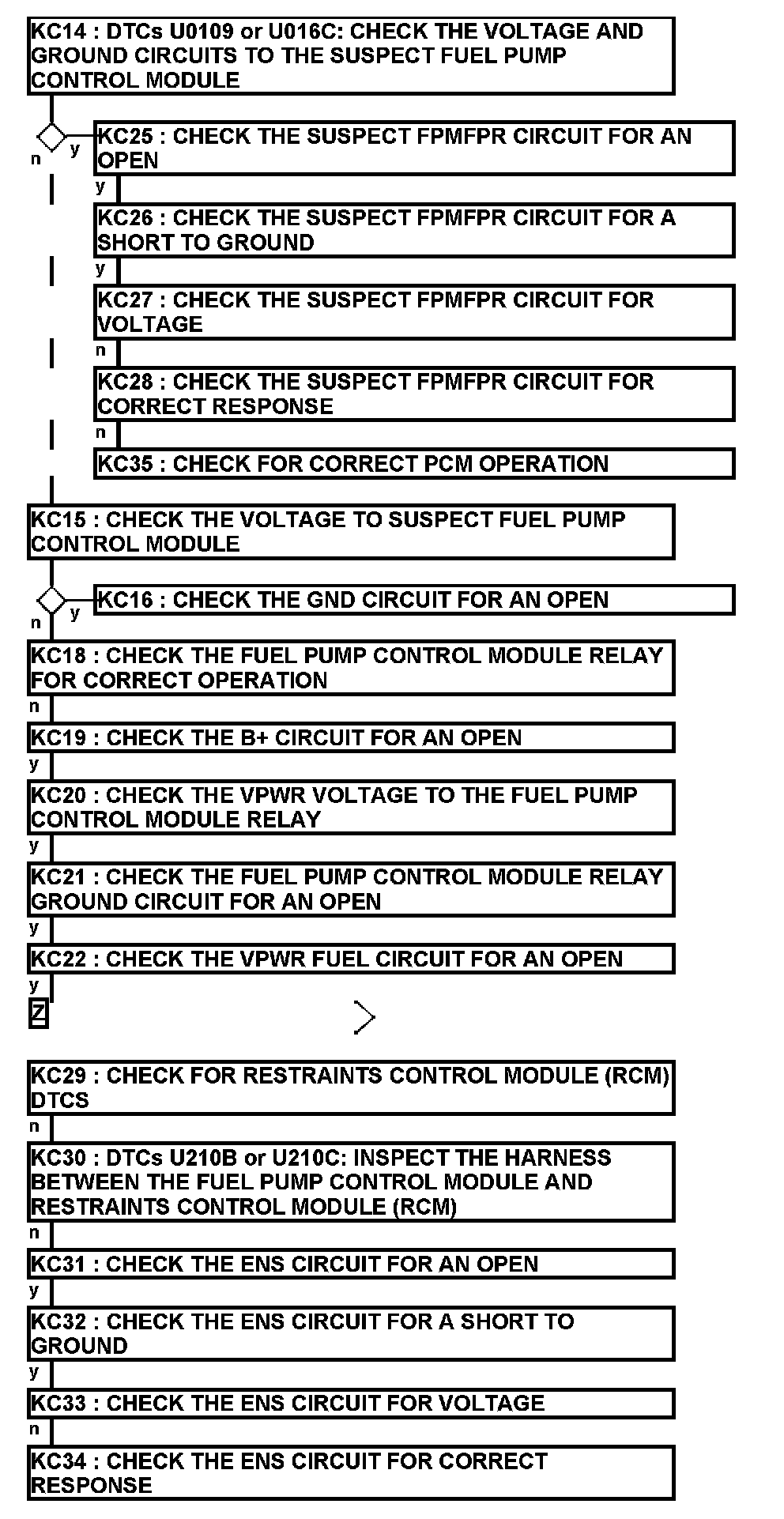

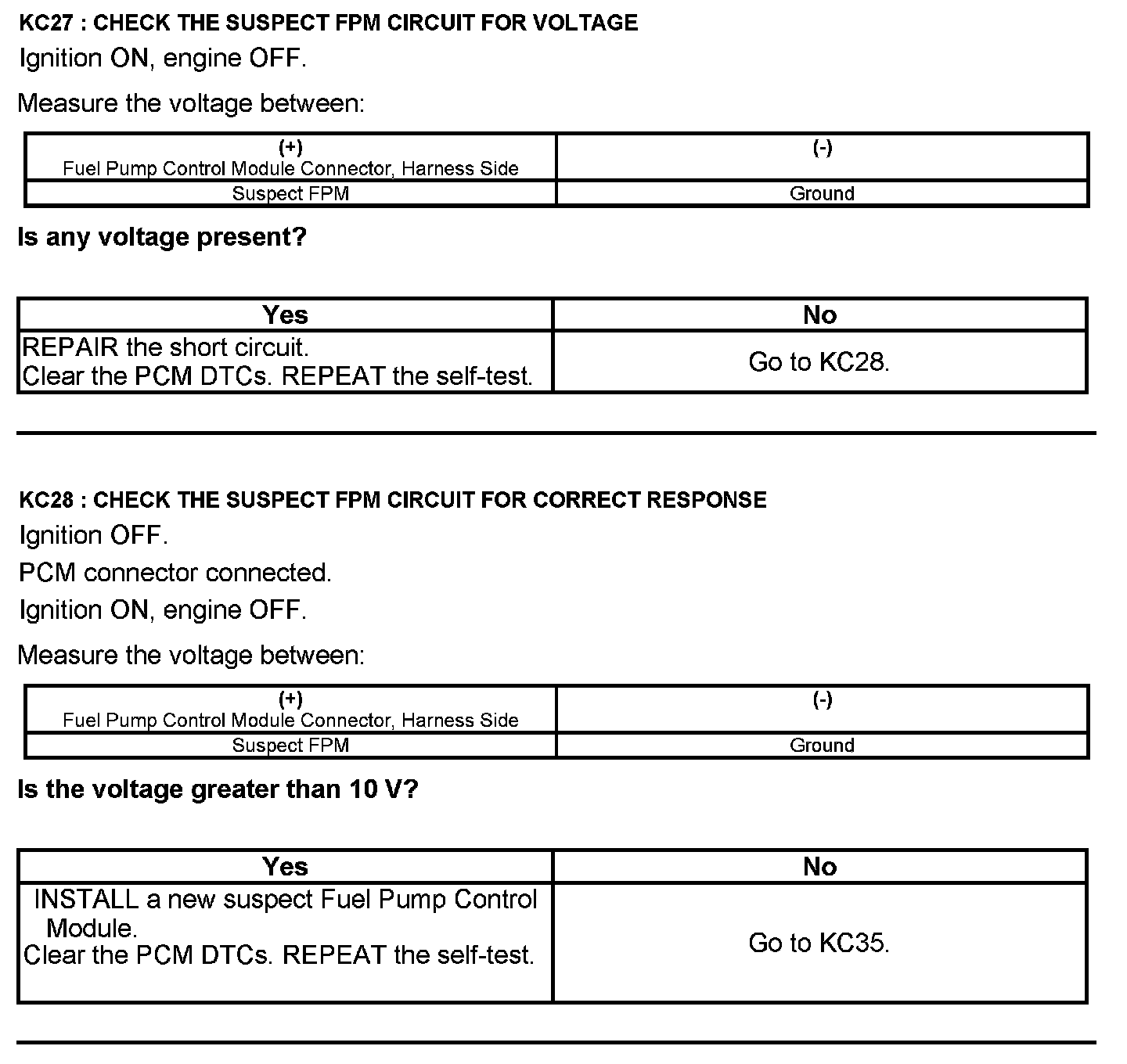

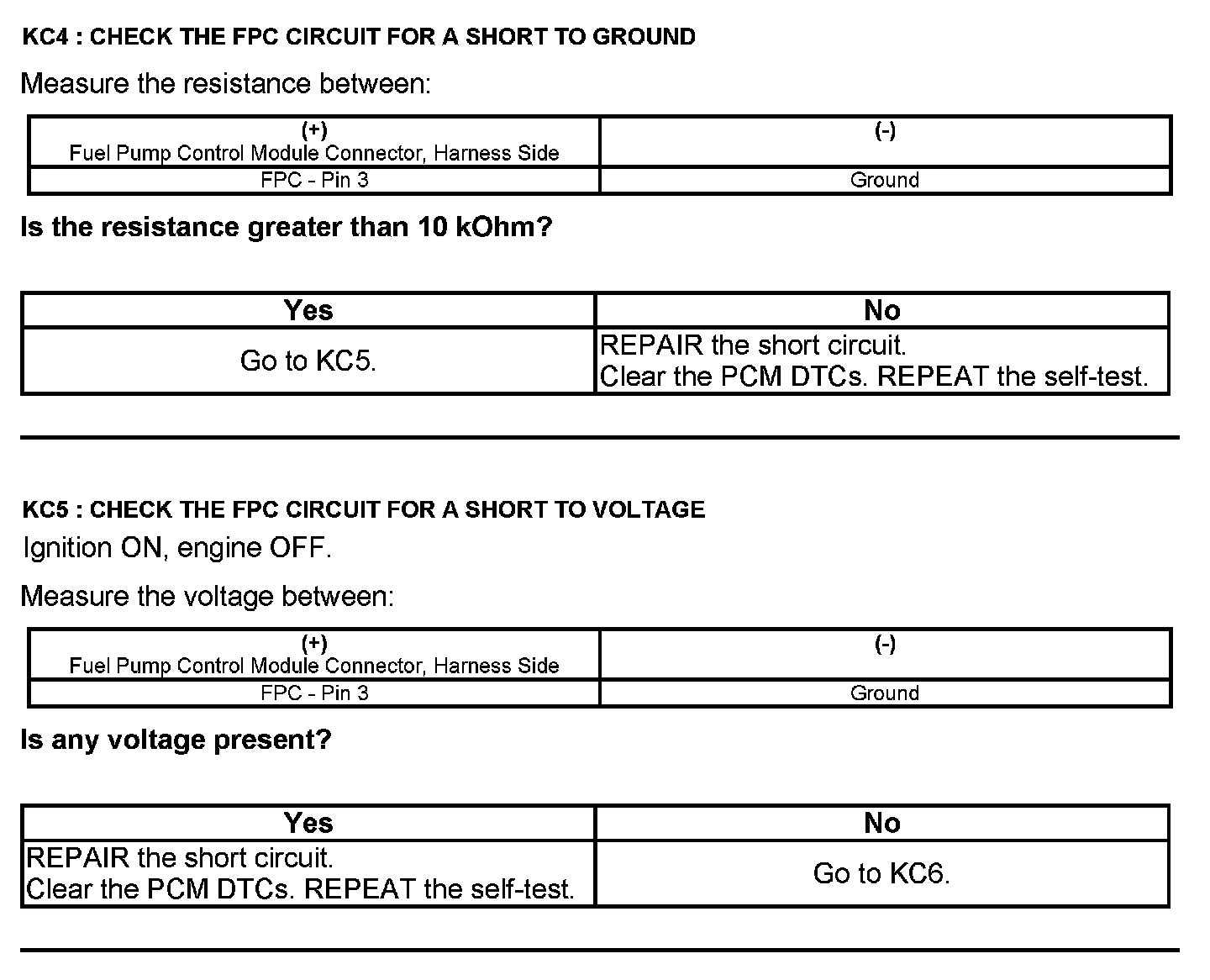

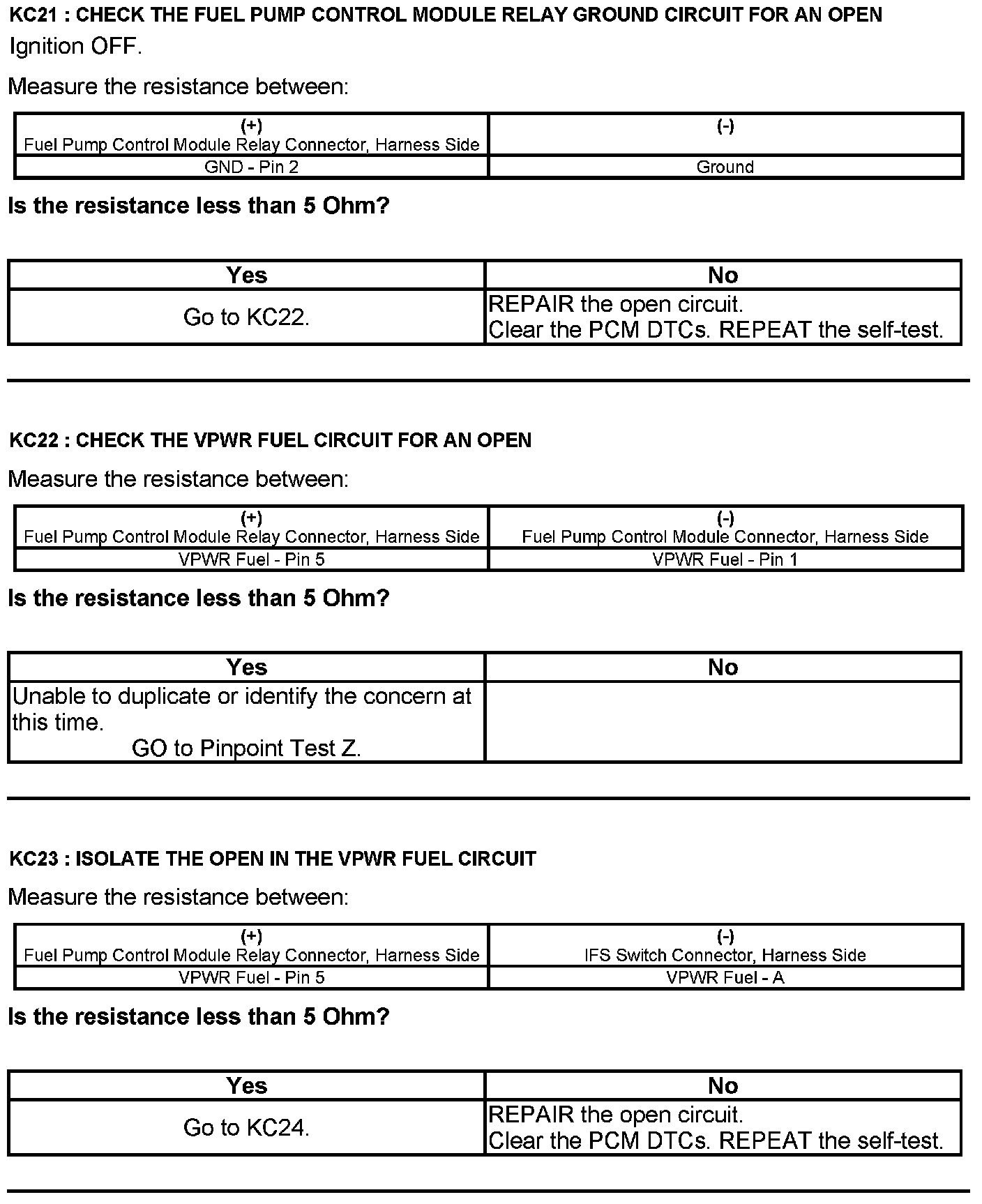

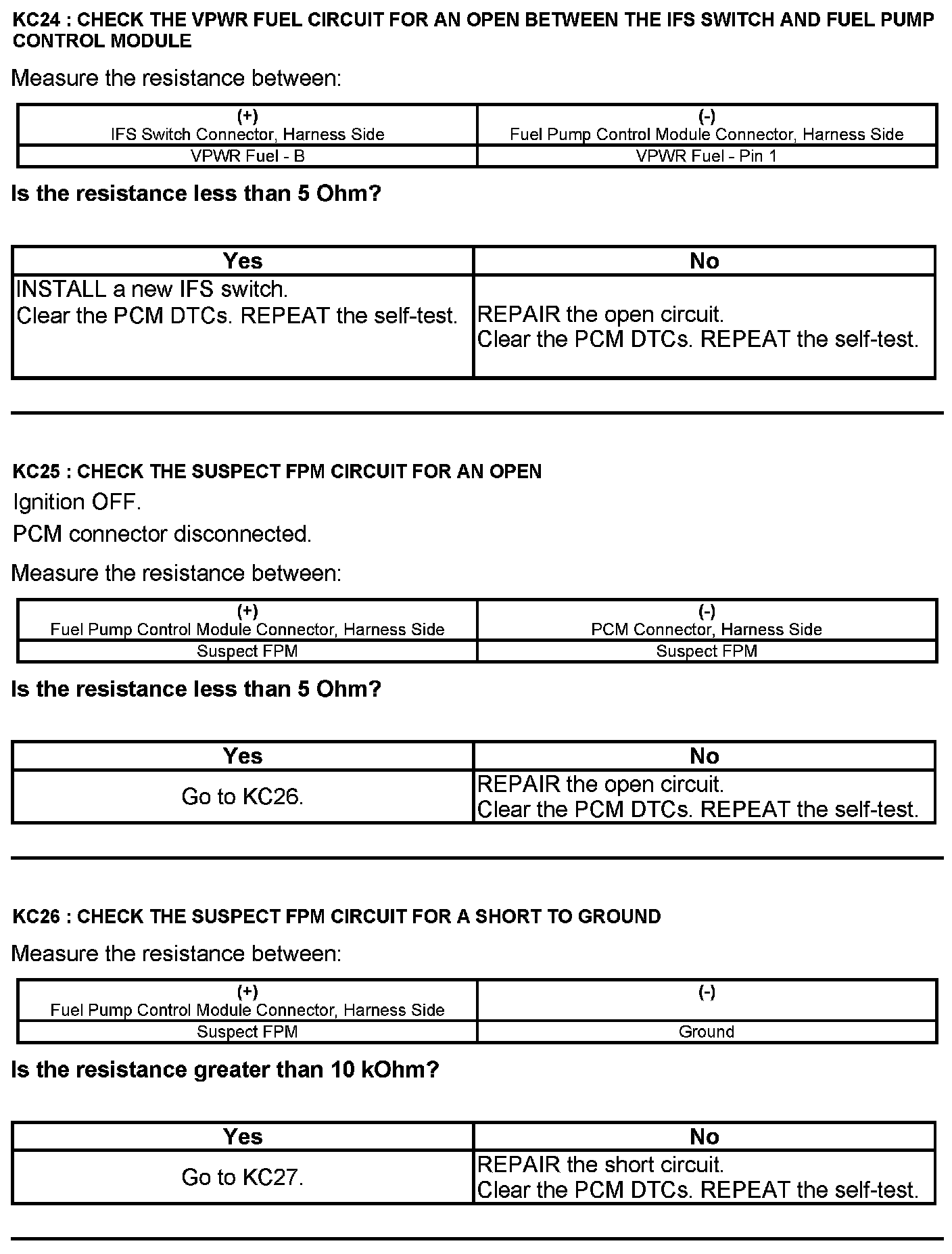

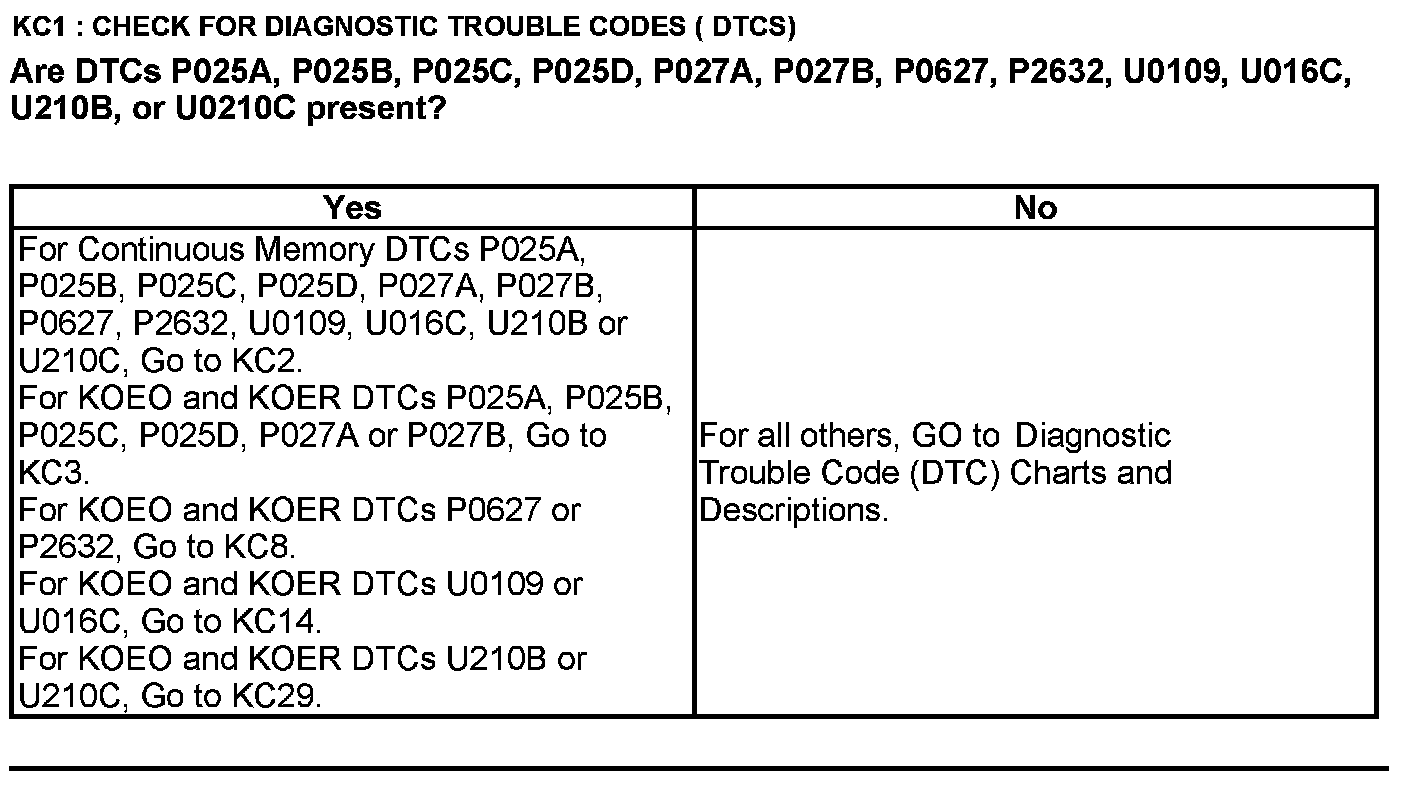

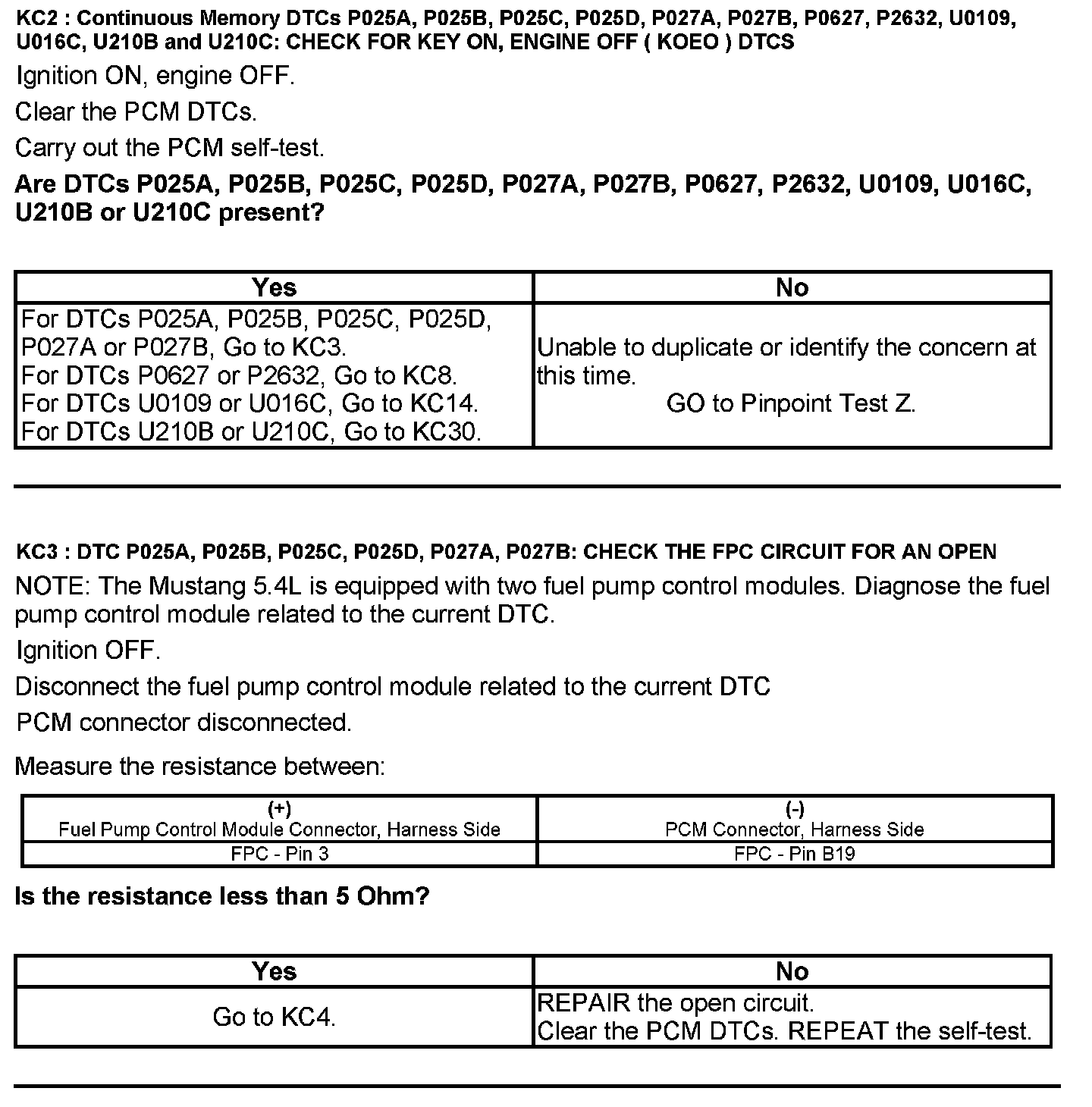

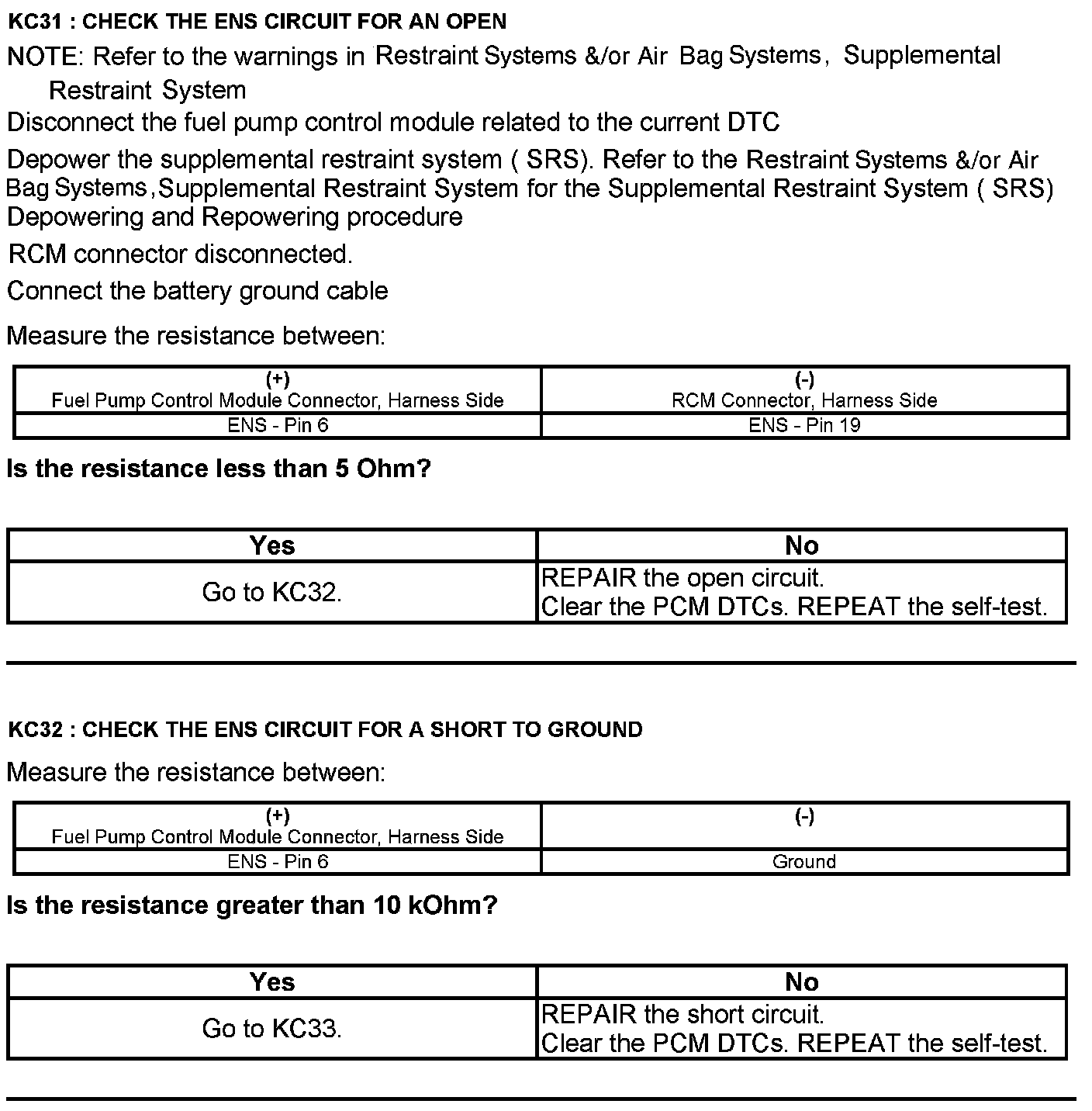

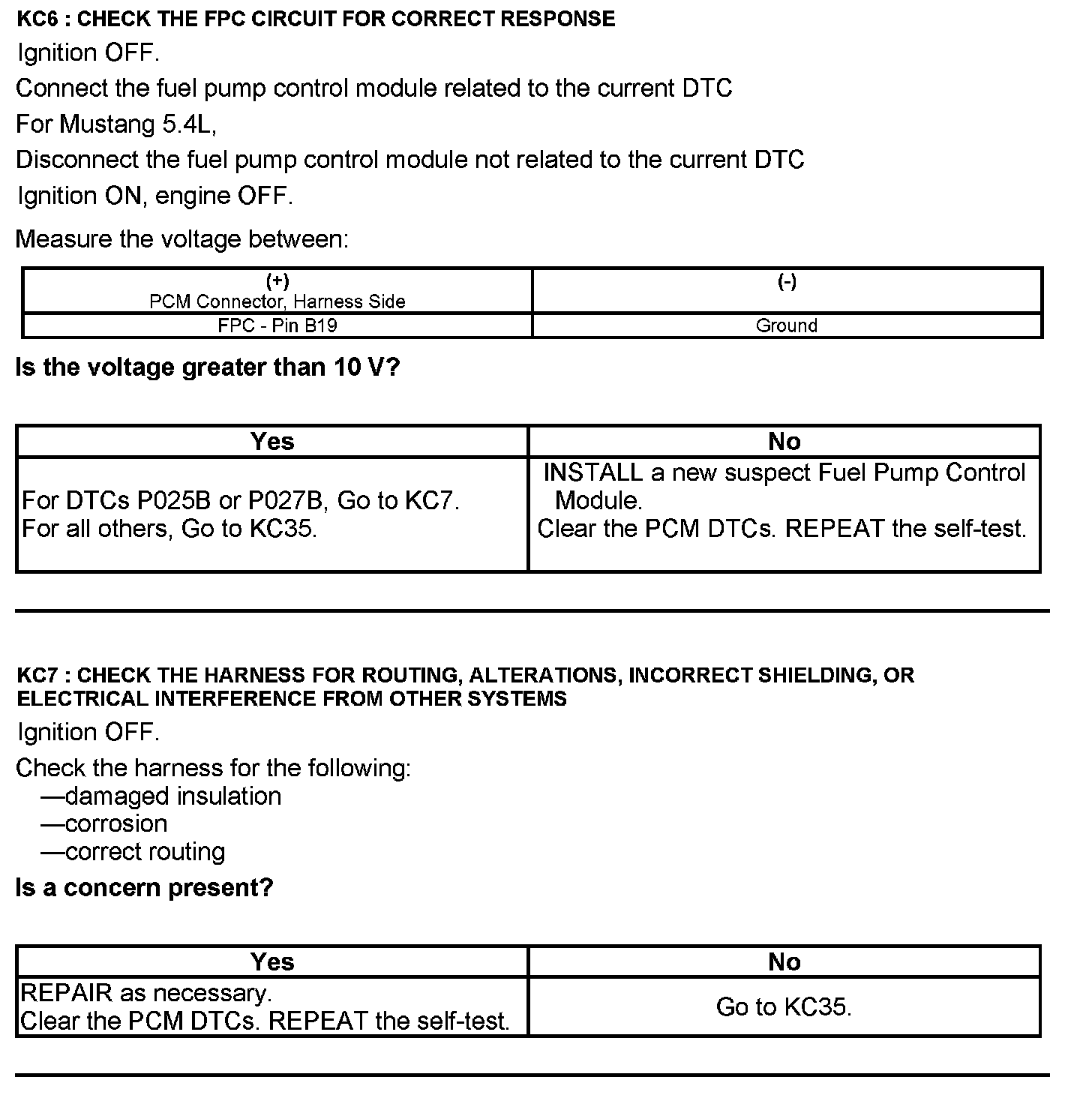

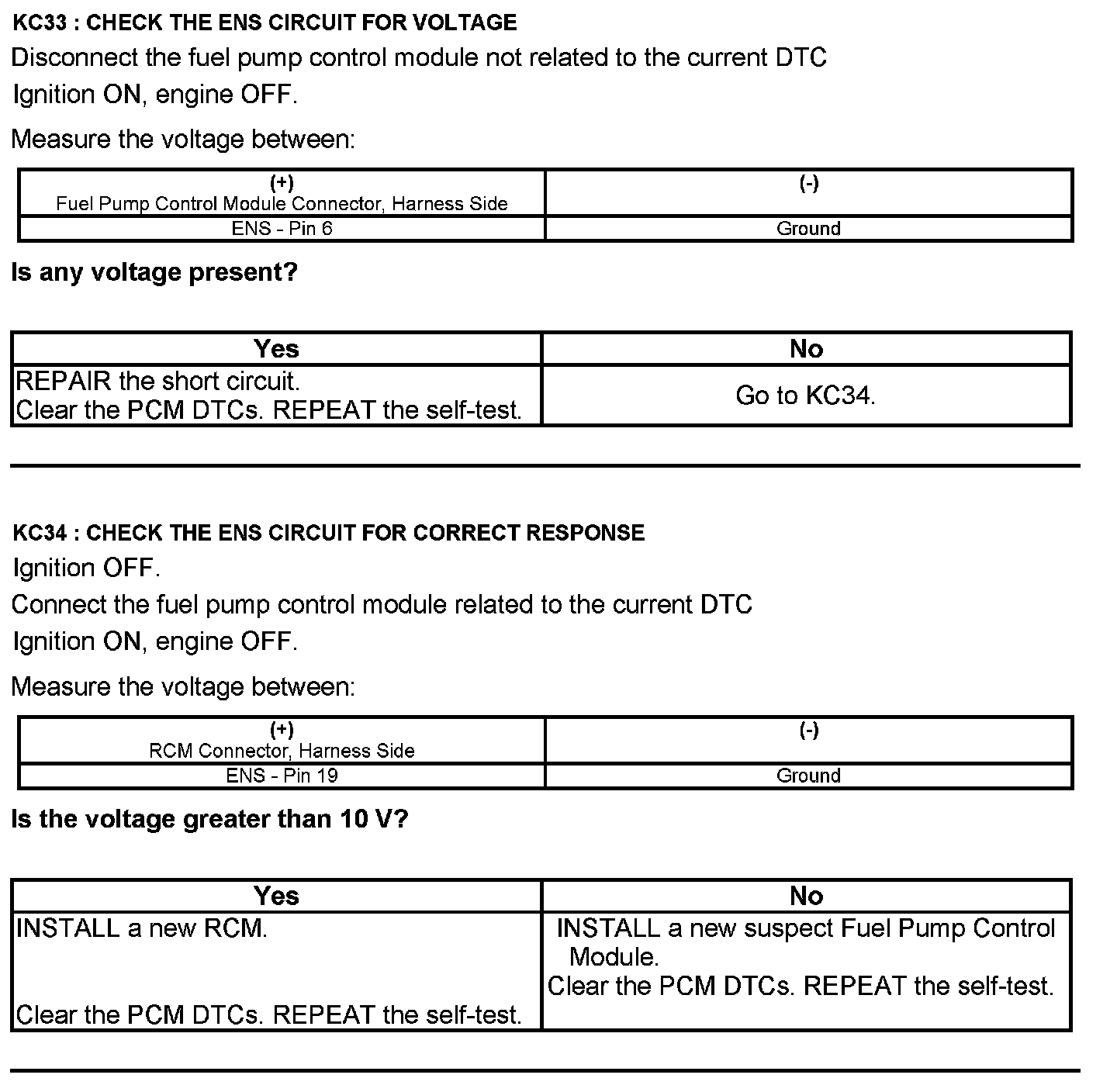

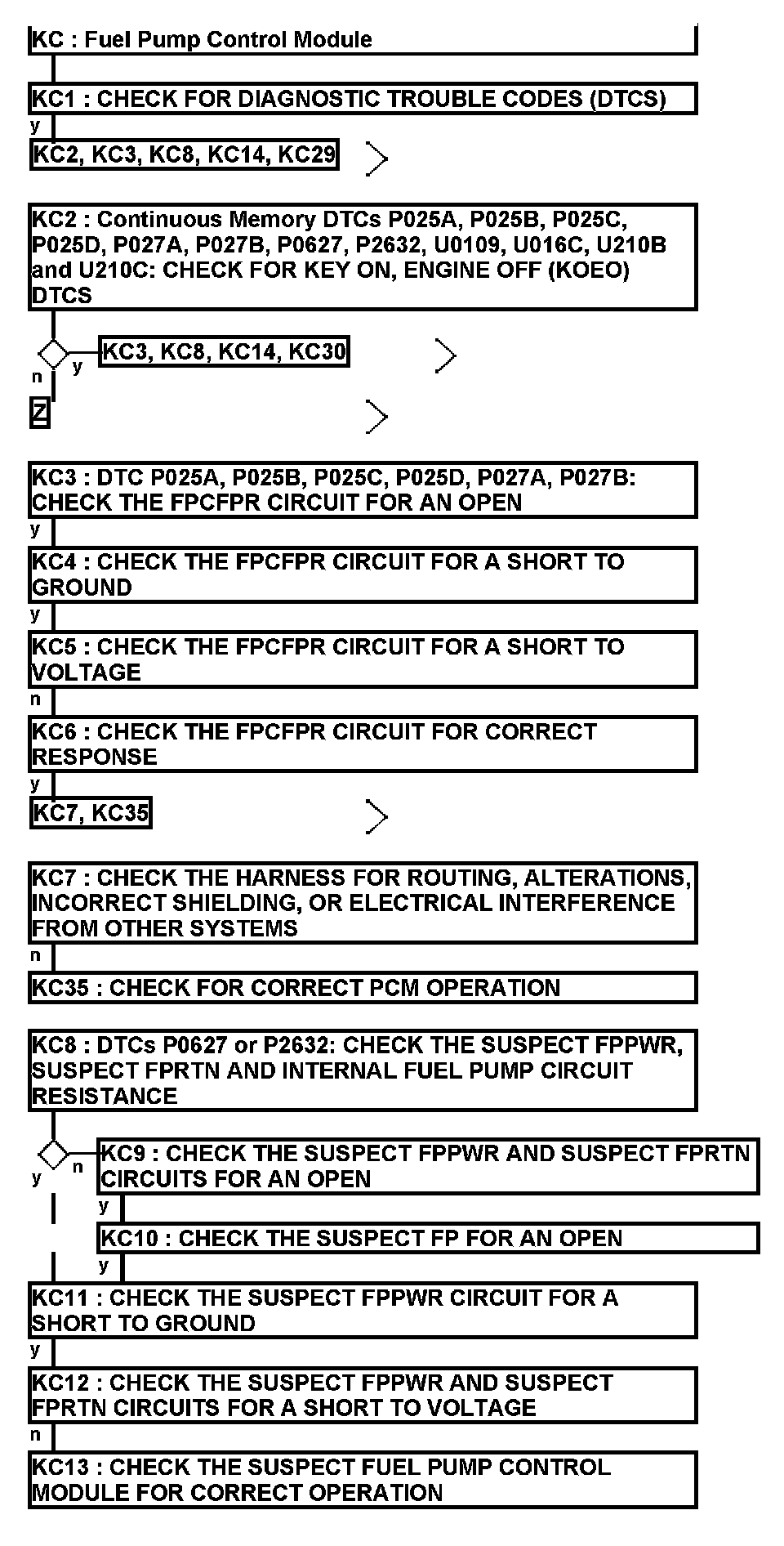

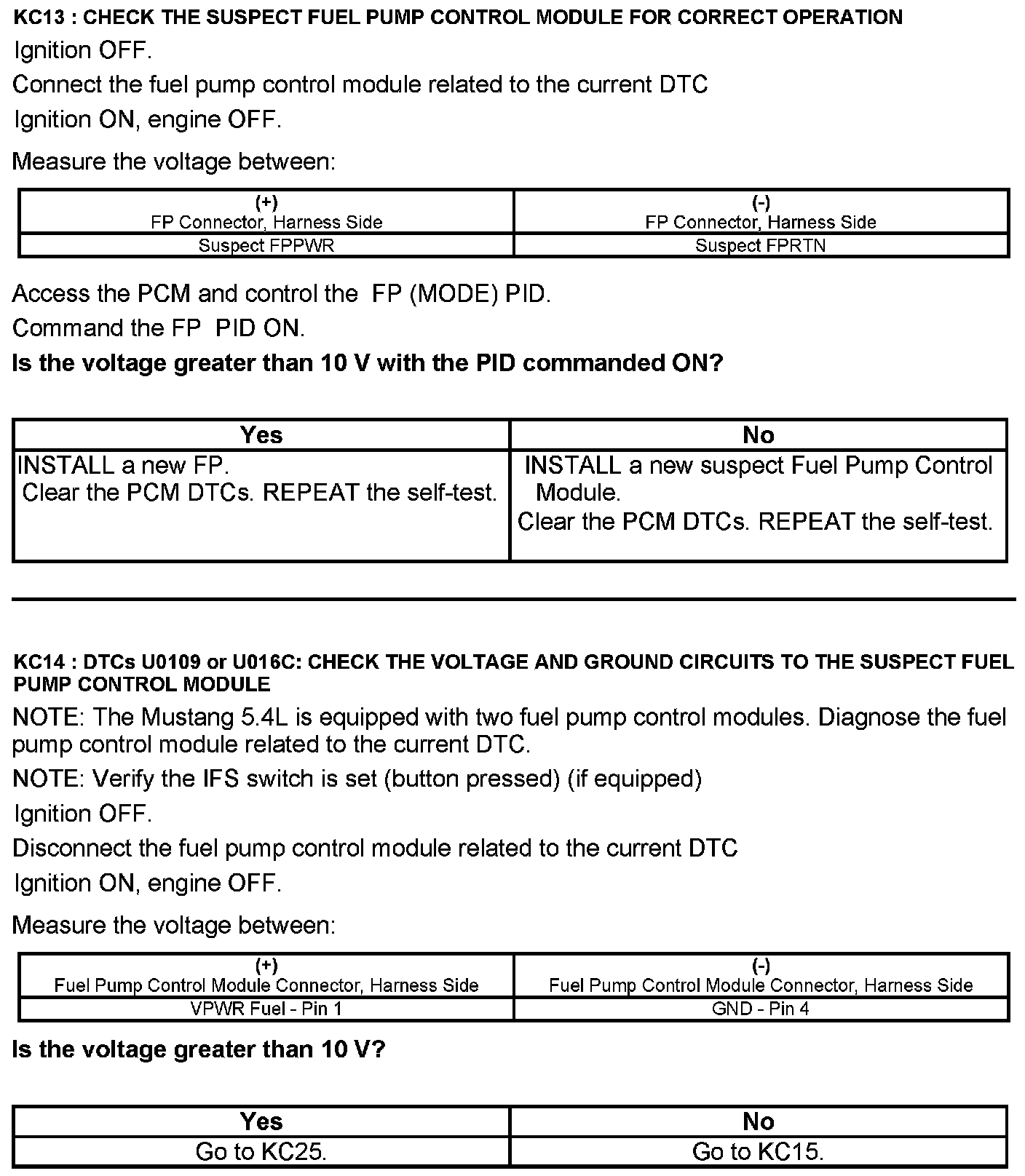

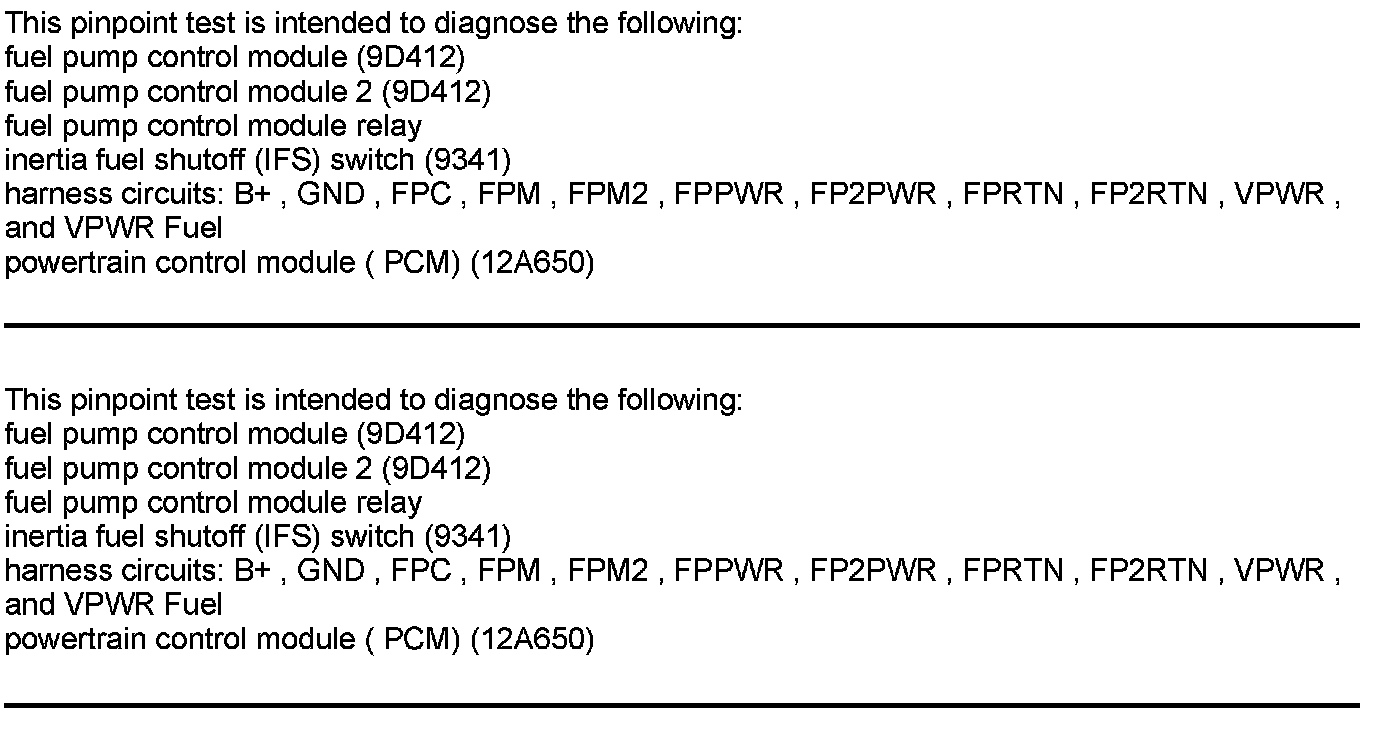

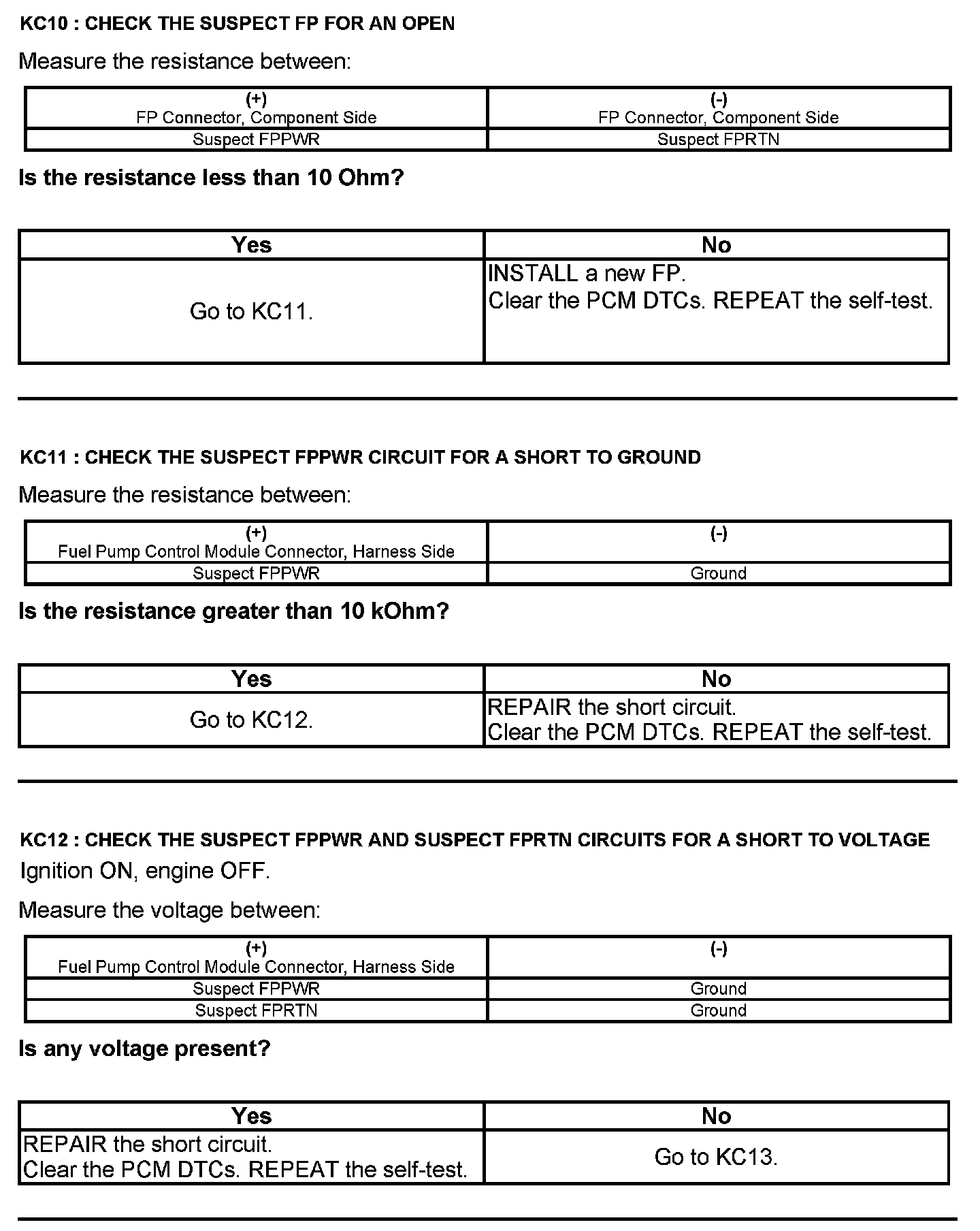

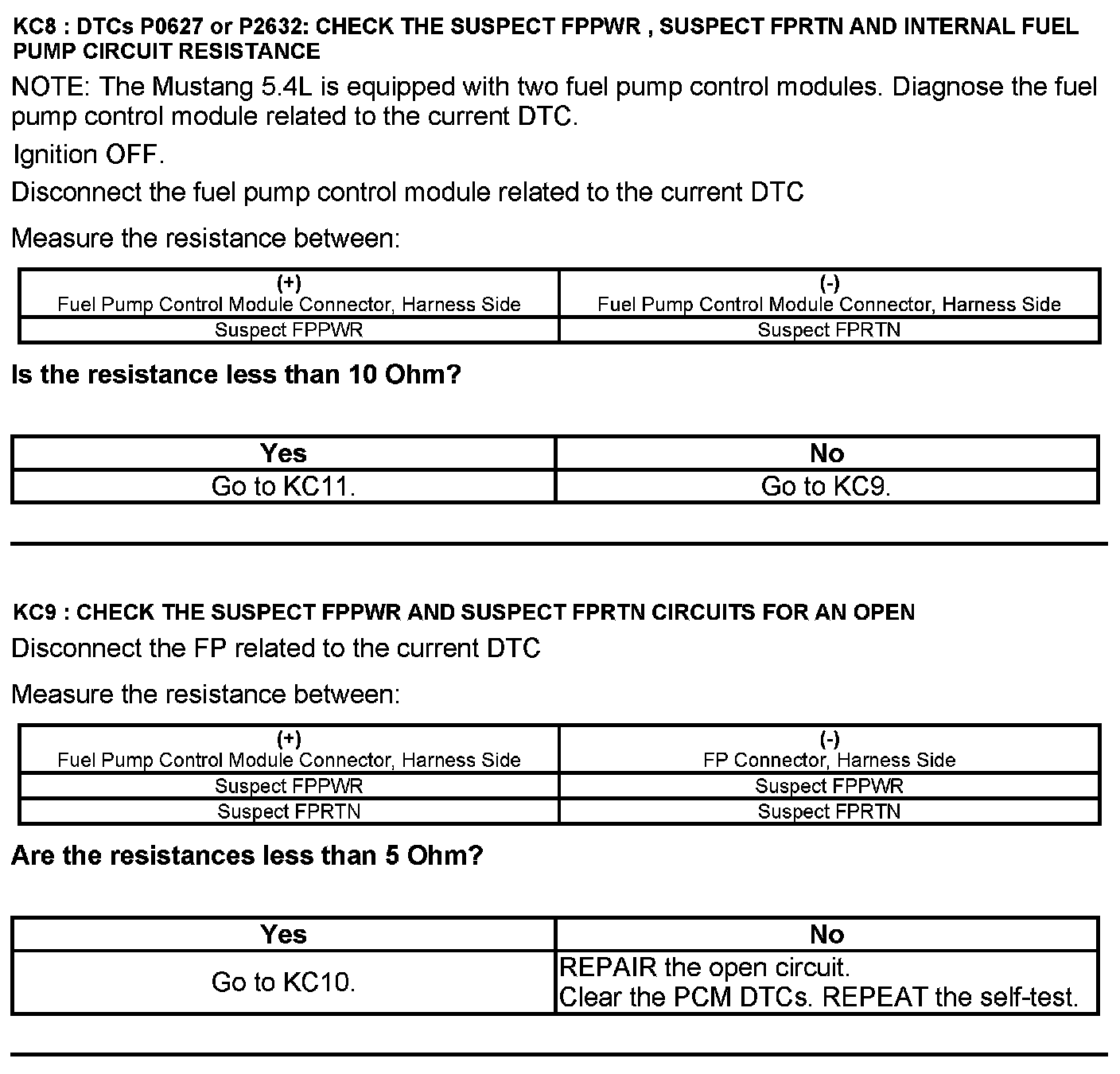

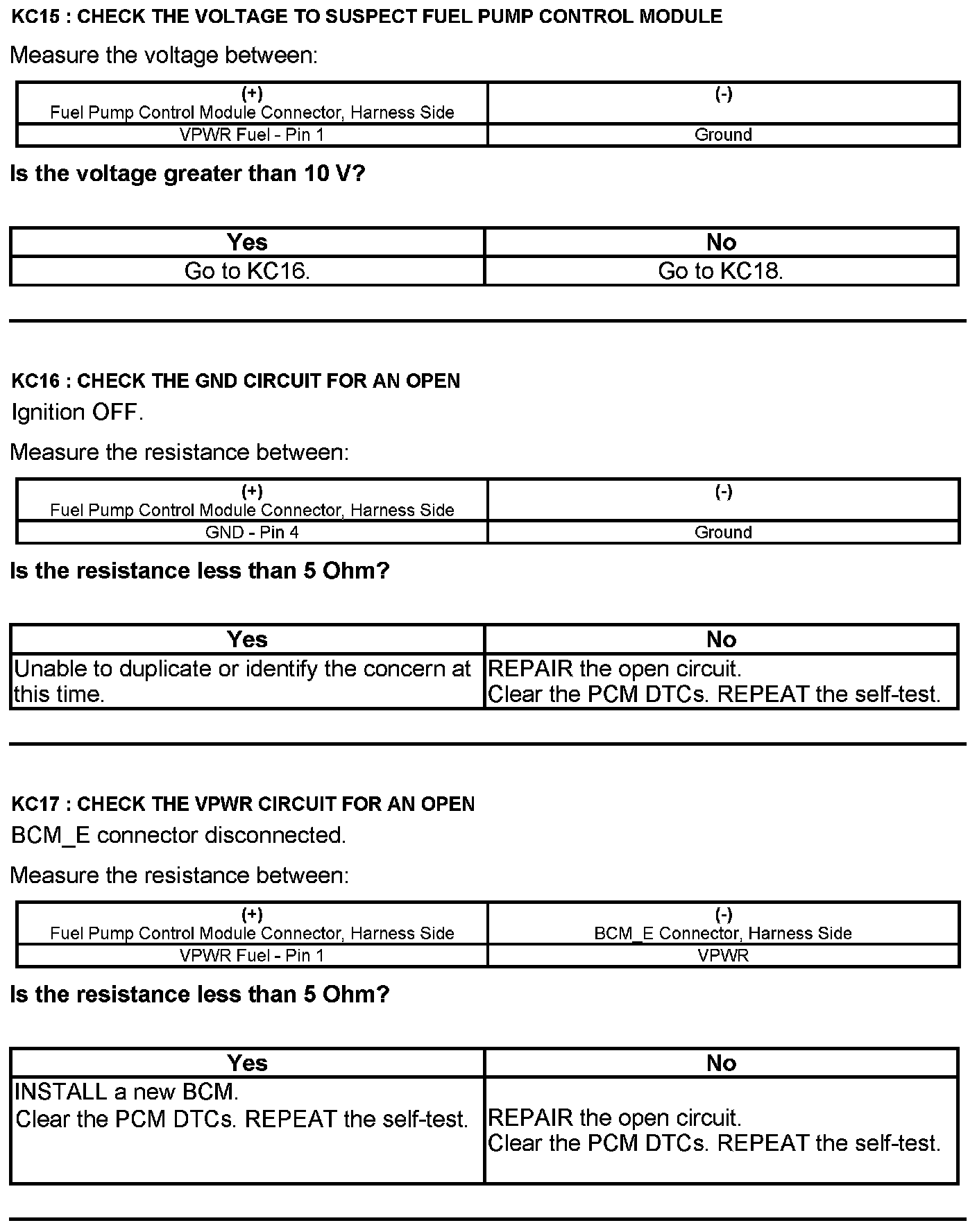

Test KC: Fuel Pump Control Module
Fuel Pump Control Module

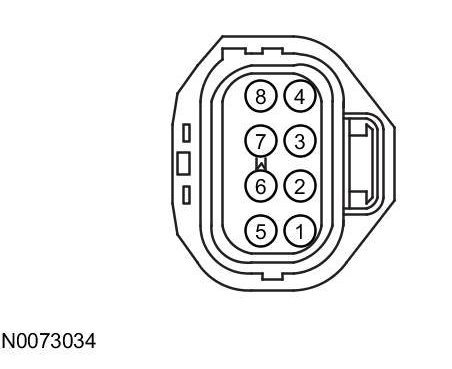

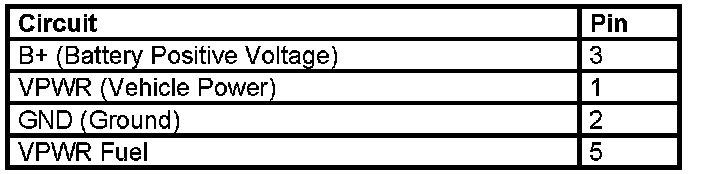

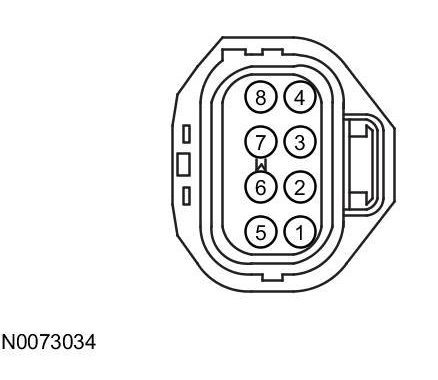

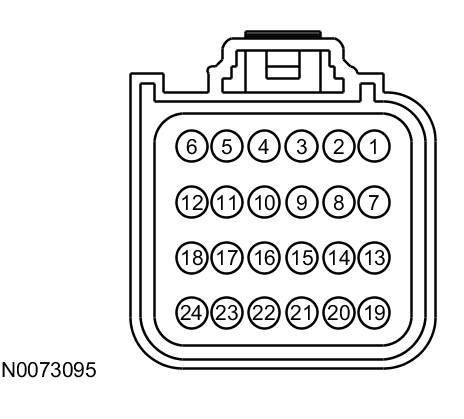

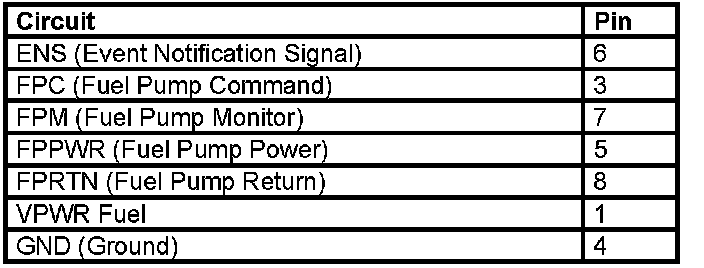

Fuel Pump Control Module Connector
Harness Side

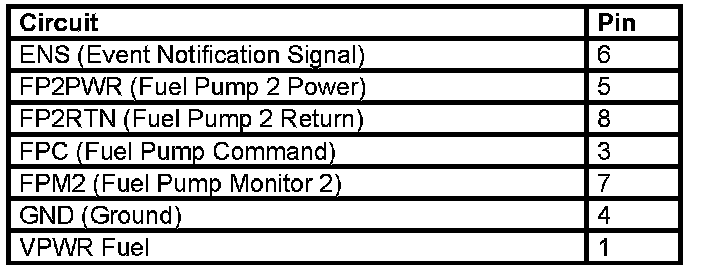

Fuel Pump Control Module 2 Module Connector
Harness Side

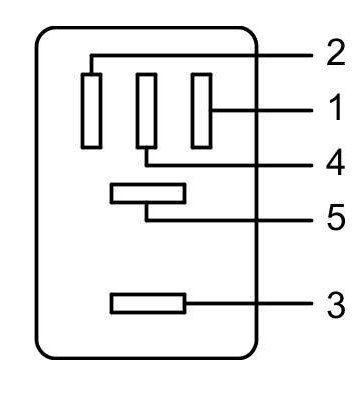

Fuel Pump Control Module Relay Connector - Refer to the Wiring Diagrams for schematic and connector information.
Harness Side

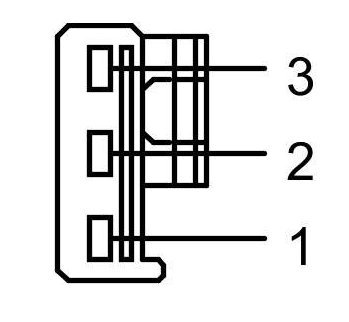

Inertia Fuel Shutoff (IFS) Switch Connector
Harness Side
Restraints Control Module (RCM) Connector
Harness Side

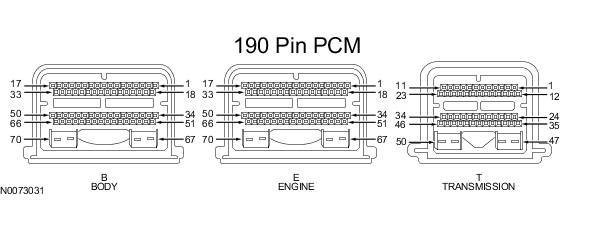

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
