2012 Lincoln MKS Base, FWDFACTORY OEM SERVICE PROCEDURE

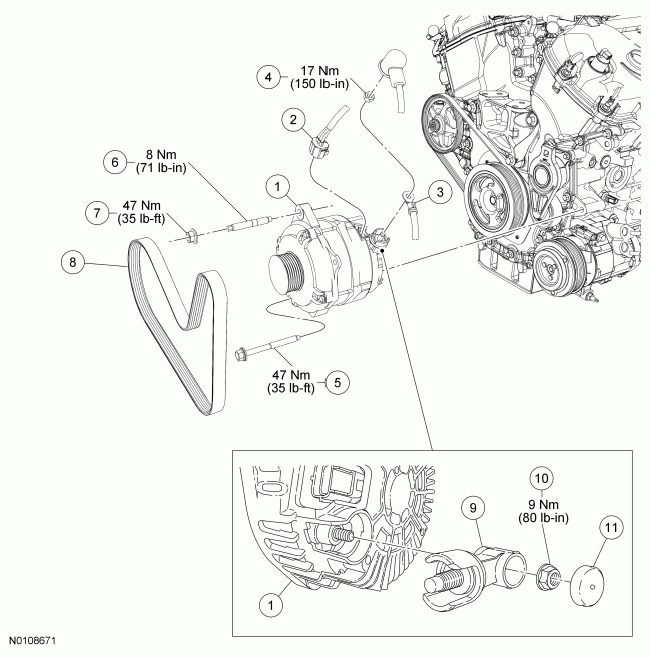

Removal And Installation: Generator: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | 10346 | Generator |
| 2 | - | Generator electrical connector (part of 14B060) |
| 3 | - | Generator B+ terminal (part of 14B060) |
| 4 | W706414 | Generator B+ terminal nut |
| 5 | W709986 | Generator bolt (lower) |
| 6 | W712609 | Generator stud (replacement bolts, W709986) |
| 7 | W520414 | Generator stud nut |
| 8 | 8620 | Accessory drive belt |
| 9 | 10329 | Radial arm adapter |
| 10 | - | Radial arm adapter nut (part of 10329) |
| 11 | - | Radial arm adapter cap (part of 10329) |
